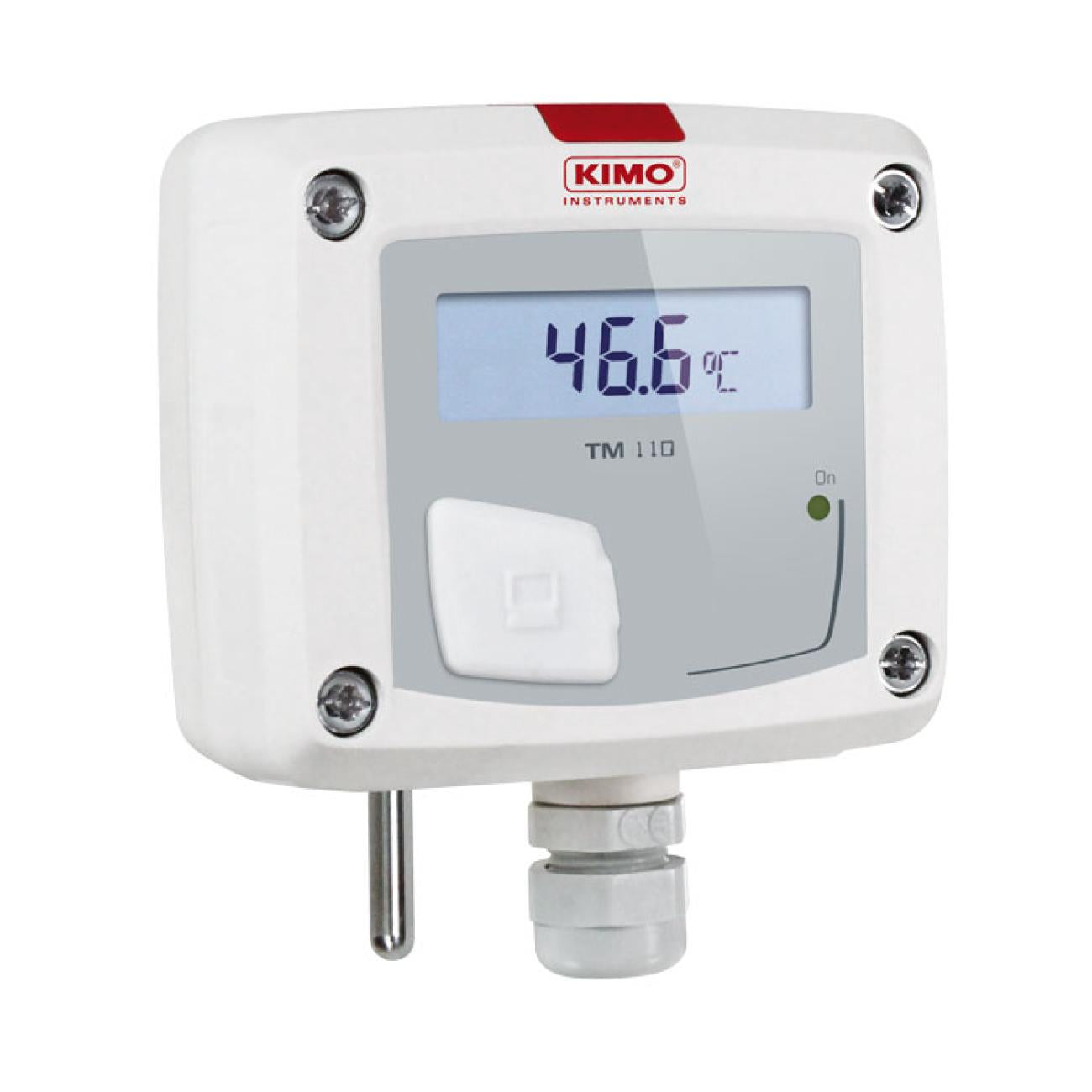

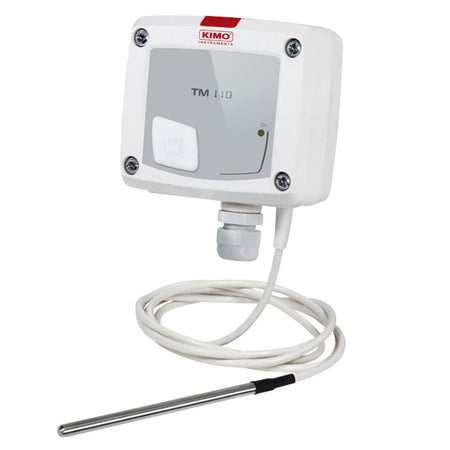

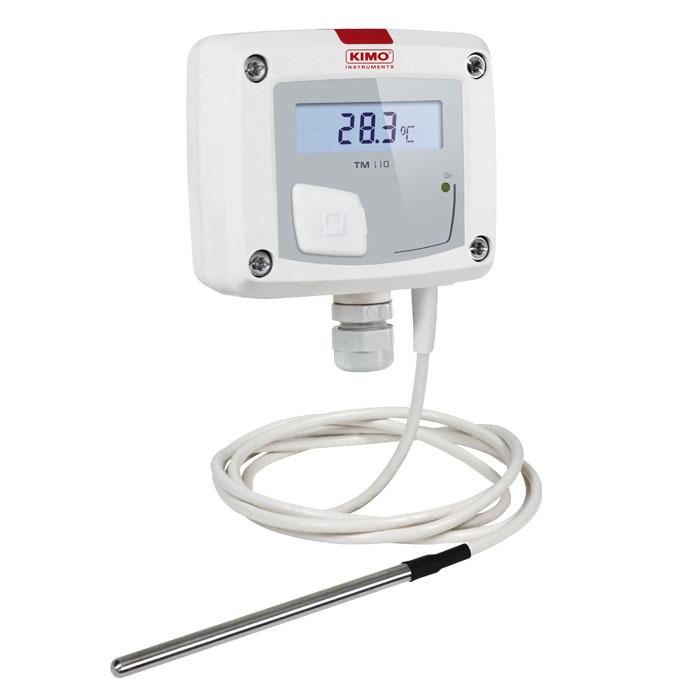

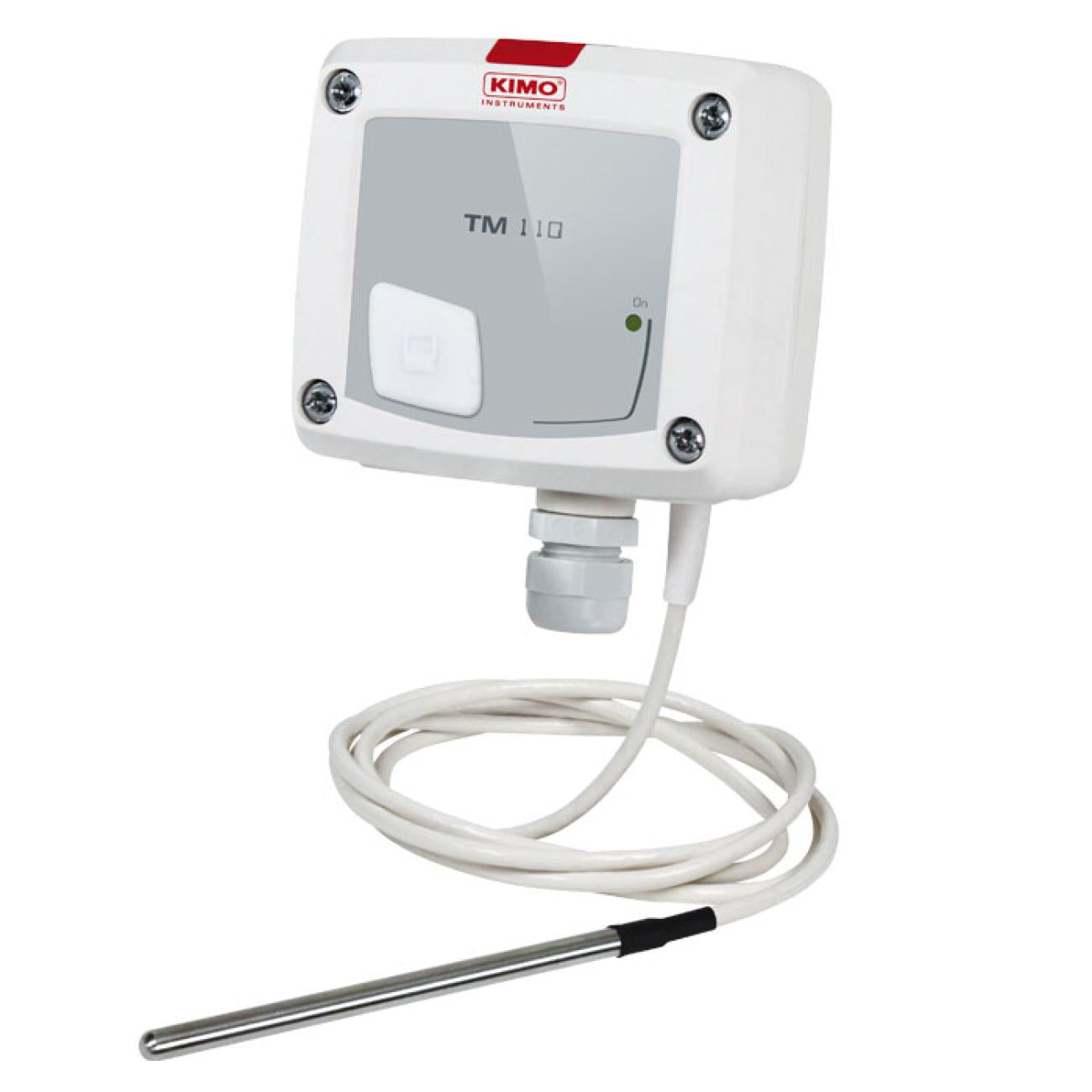

TM 110 Temperature transmitter

Temperature Transmitter / Sensor

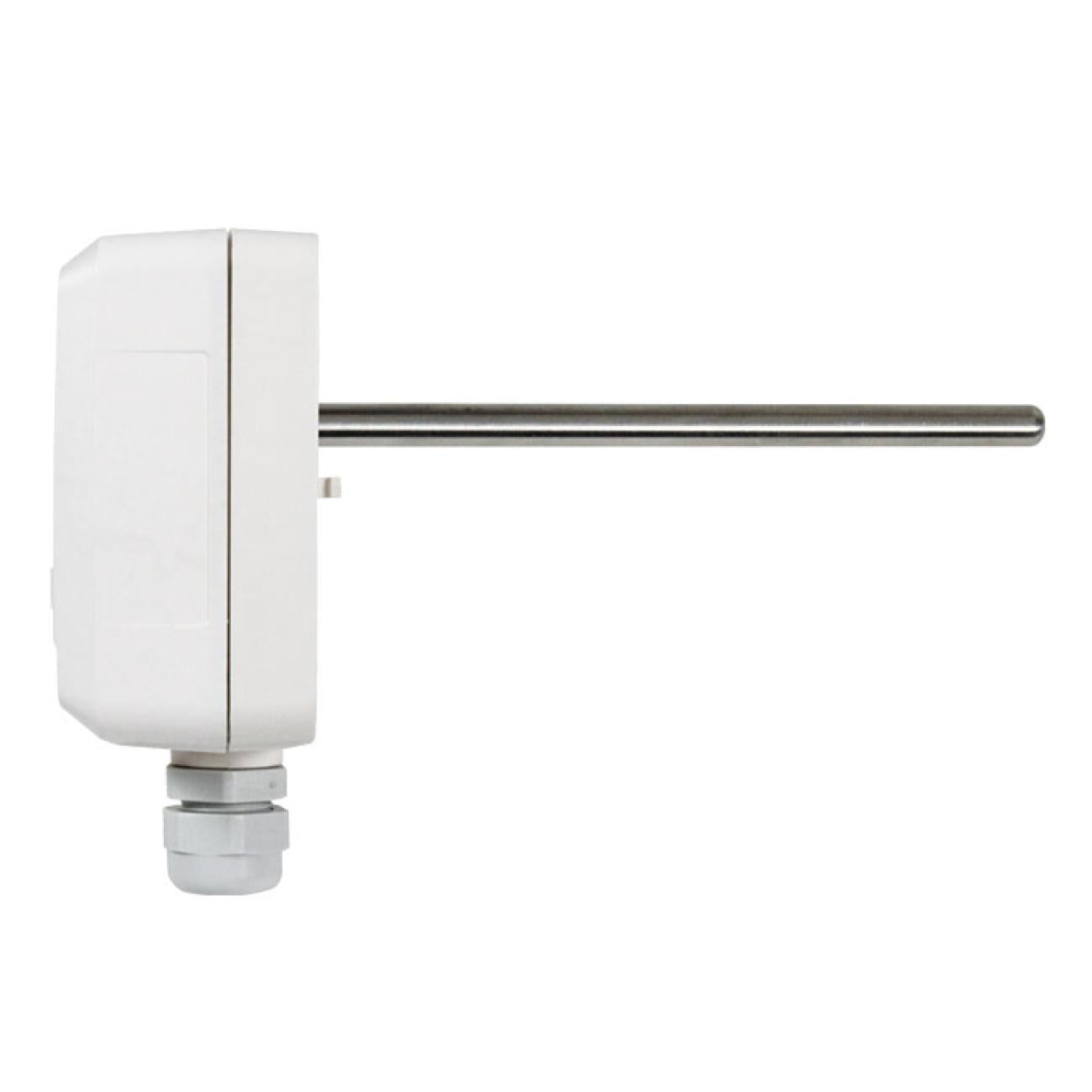

Kimo’s TM 110 has a temperature range from 0 to 50°C (ambient and airtight ambient models), from -20 to +80°C (duct model) and from -100 to 400°C (model with Pt100 terminal block).

Measure details

• Units
  °F, °C

Technical details

• Parameters
  Temperature
• Displays
  No

  1-line display
• Standards
  UKCA

  2011/65/EU RoHS II

  2012/19/EU WEEE

  2014/30/EU EMC

  2014/35/EU Low Voltage
• Power supply
  24 Vac/Vdc (Active) or 16/30 Vdc (Passive)
• Outputs
  0-10 V (Active) or 4-20 mA (Passive)
• Ethernet communication
  No
• ModBus network
  No

Instrument Dimensions

• Length
  90 mm
• Width
  46 mm
• Height
  109 mm
• Weight
  162 g

Operating temperature

• Min
  0.00 °C
• Max
  50.00 °C
