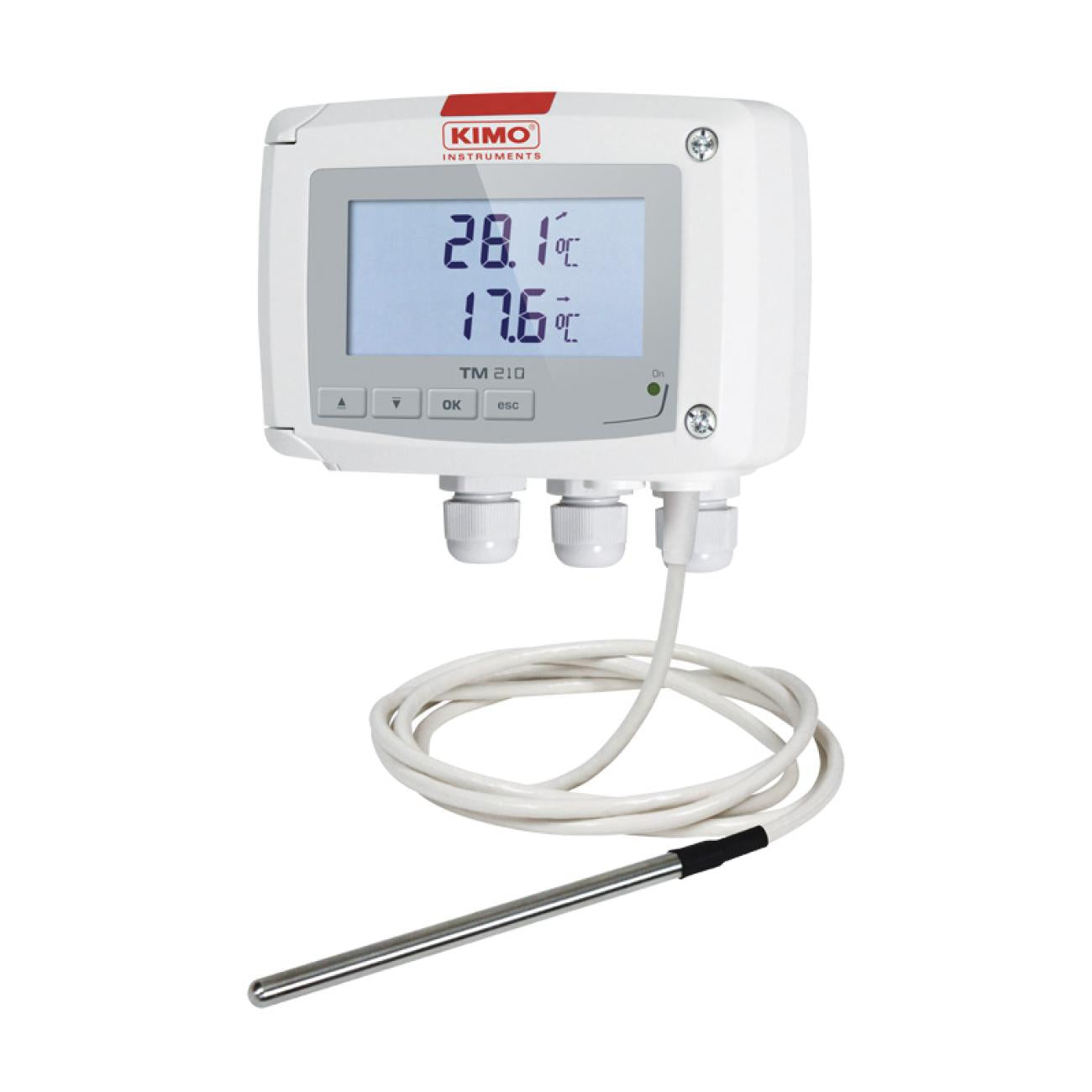

TM 210-R Temperature sensor

Temperature Transmitter / Sensor

Kimo’s TM 210-R can measure up to two temperatures.

Features

• Configurable ranges from 0 to 50 °C (ambient model) and from -100 to 400 °C (model with terminal block)
• 24 Vdc/Vac power supply
• Display of the minimum and maximum values and trend indicator
• “¼ turn” system mounting with wall-mount plate

Measure details

• Units
  °C

Technical details

• Parameters
  Temperature
• Displays
  2-line display
• IP Protection
  IP 65
• Standards
  UKCA

  2011/65/EU RoHS II

  2012/19/EU WEEE

  2014/30/EU EMC

  2014/35/EU Low Voltage
• Power supply
  24 Vac/Vdc
• Outputs
  2 x 4-20 mA or 2 x 0-20 mA or 2 x 0-5 V or 2 x 0-10 V (4 wires)
• Relay
  2 changeover relays 3 A / 230 V
• Ethernet communication
  No
• ModBus network
  No

Instrument Dimensions

• Length
  125 mm
• Width
  59.2 mm
• Height
  115 mm
• Weight
  340 g



Operating temperature

• Min
  -10.00 °C
• Max
  50.00 °C

Storage temperature

• Min
  -10.00 °C
• Max
  70.00 °C
