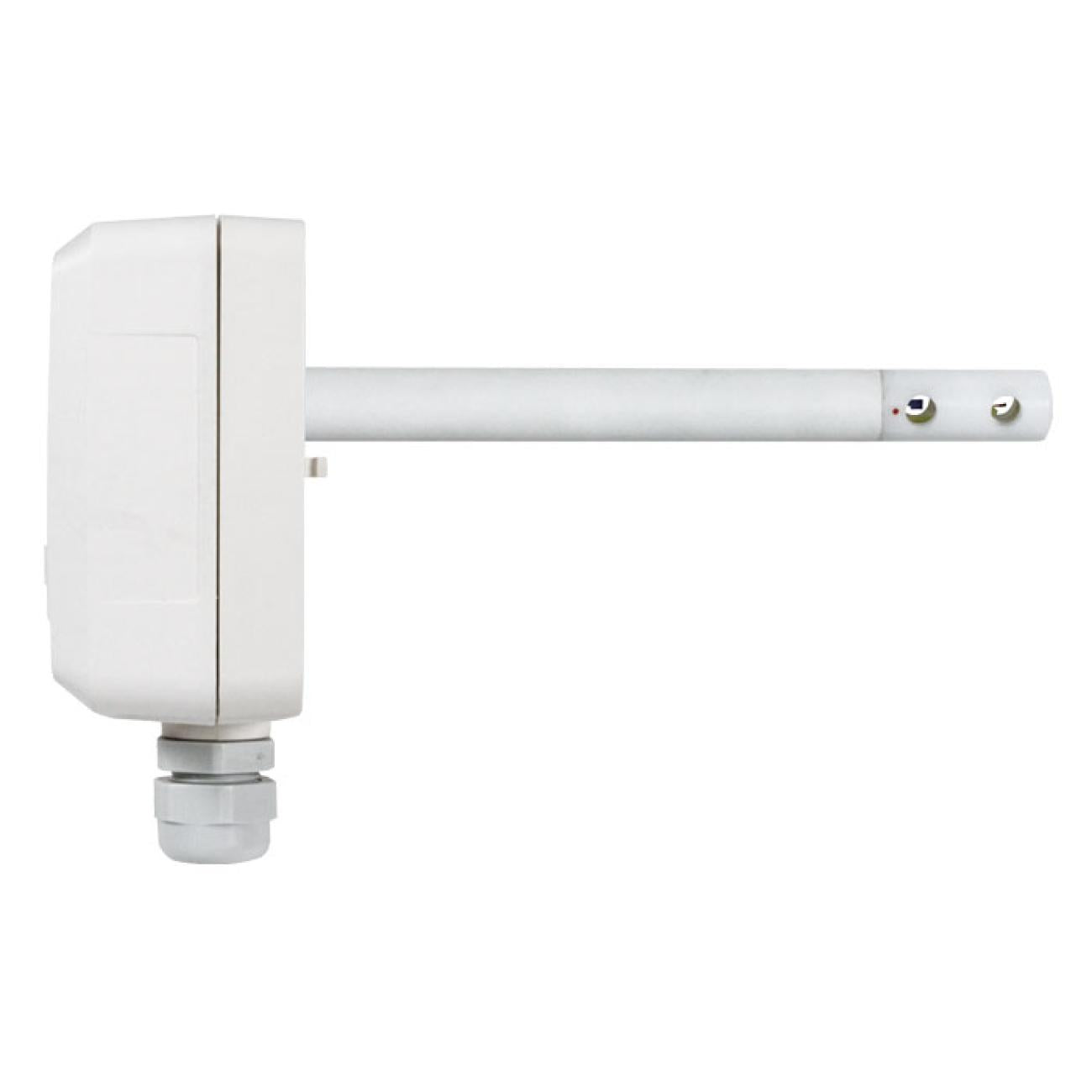

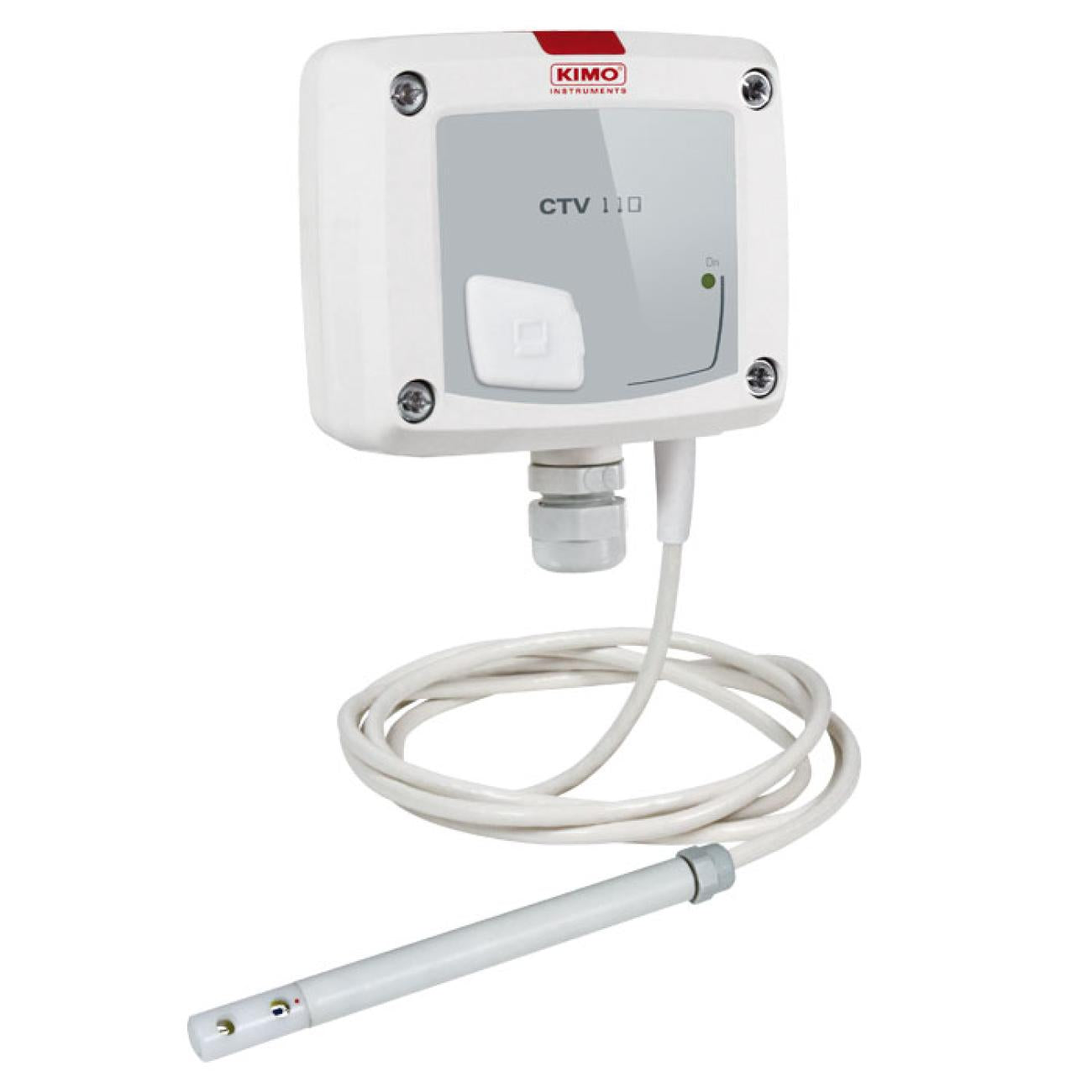

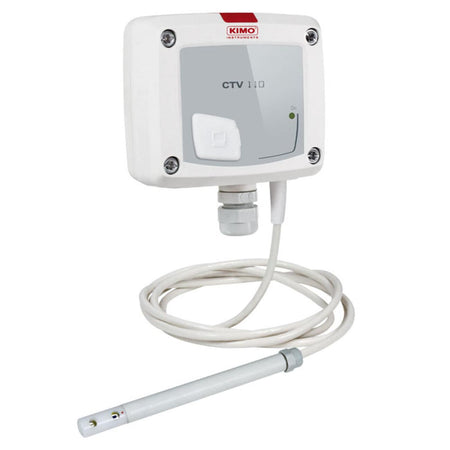

CTV 110 Temperature and air velocity transmitter

Temperature and air velocity transmitter

Kimo’s CTV 110 measures temperature and air velocity from 0 to 30 m/s and from 0 to 50°C.

Features

• Configurable outputs
• ABS V0 housing, IP65, with or without display
• Measuring range from 0 to 30 m/s and from 0 to 50 °C
• “0-10 V or 4-20 mA output, active, power supply 24 Vac/Vdc (3-4 wires)

“¼ turn” system mounting with wall-mount plate

Housing with simplified mounting system

Measure details

• Units
  °F, °C, m/s, fpm

Technical details

• Parameters
  Air velocity

  Temperature
• Displays
  No

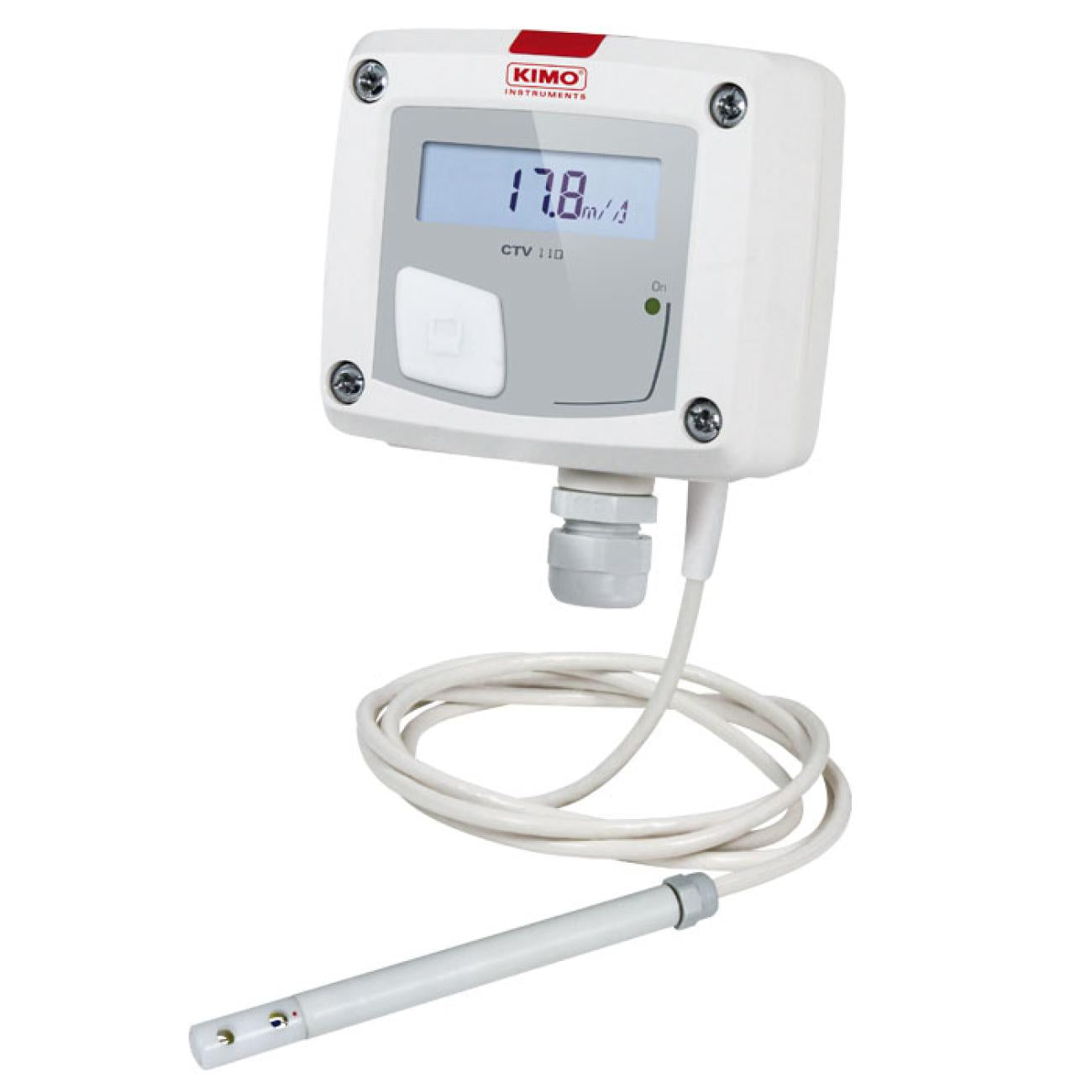

  1-line display
• IP Protection
  IP 65
• Standards
  UKCA

  2011/65/EU RoHS II

  2012/19/EU WEEE

  2014/30/EU EMC

  2014/35/EU Low Voltage
• Power supply
  24 Vac/Vdc (Active)
• Outputs
  4-20 mA (Active) or 0-10V (Active)
• Ethernet communication
  No
• ModBus network
  No

Instrument Dimensions

• Length
  90 mm
• Width
  46 mm
• Height
  109 mm
• Weight
  164 g



Operating temperature

• Min
  0.00 °C
• Max
  50.00 °C

Storage temperature

• Min
  -10.00 °C
• Max
  70.00 °C
