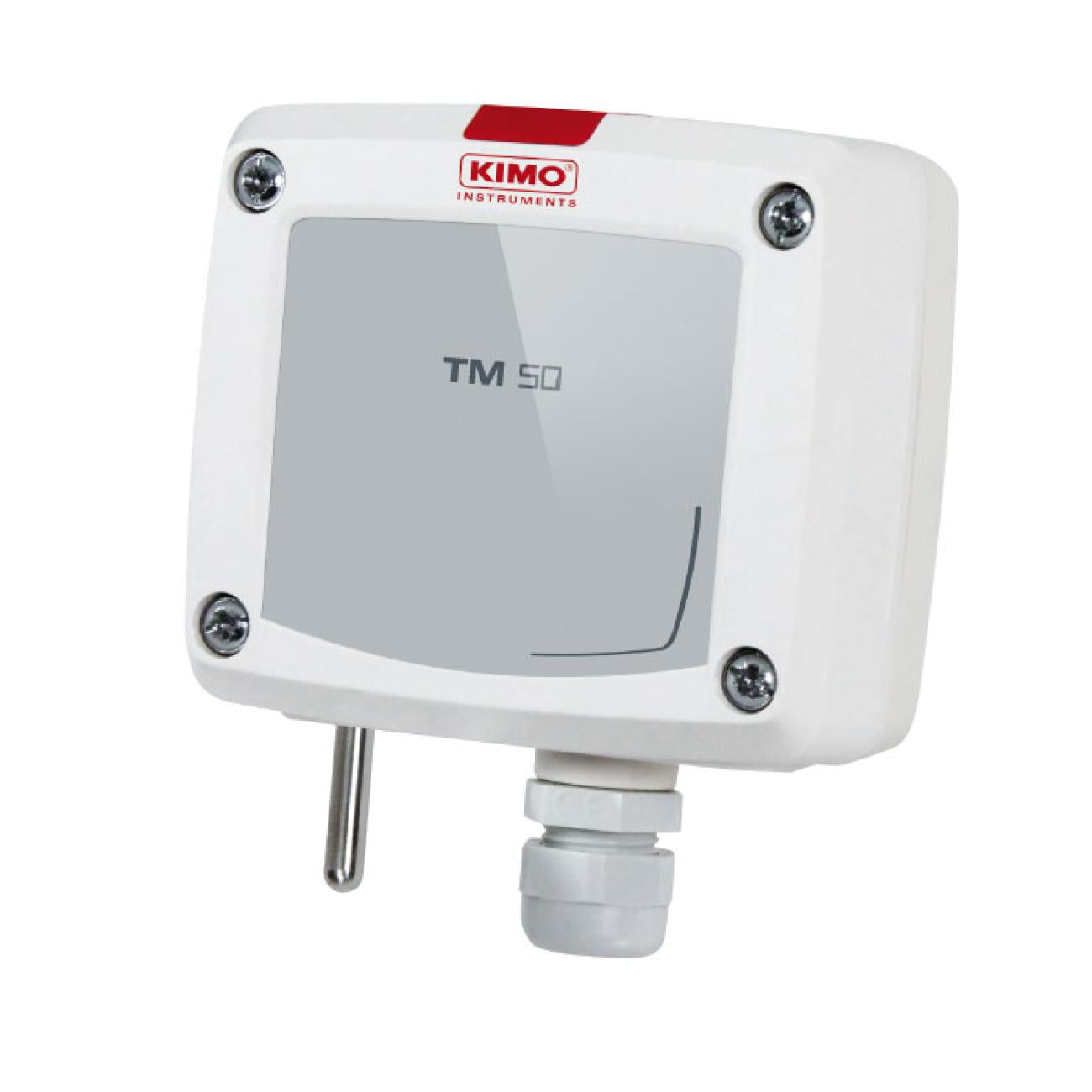

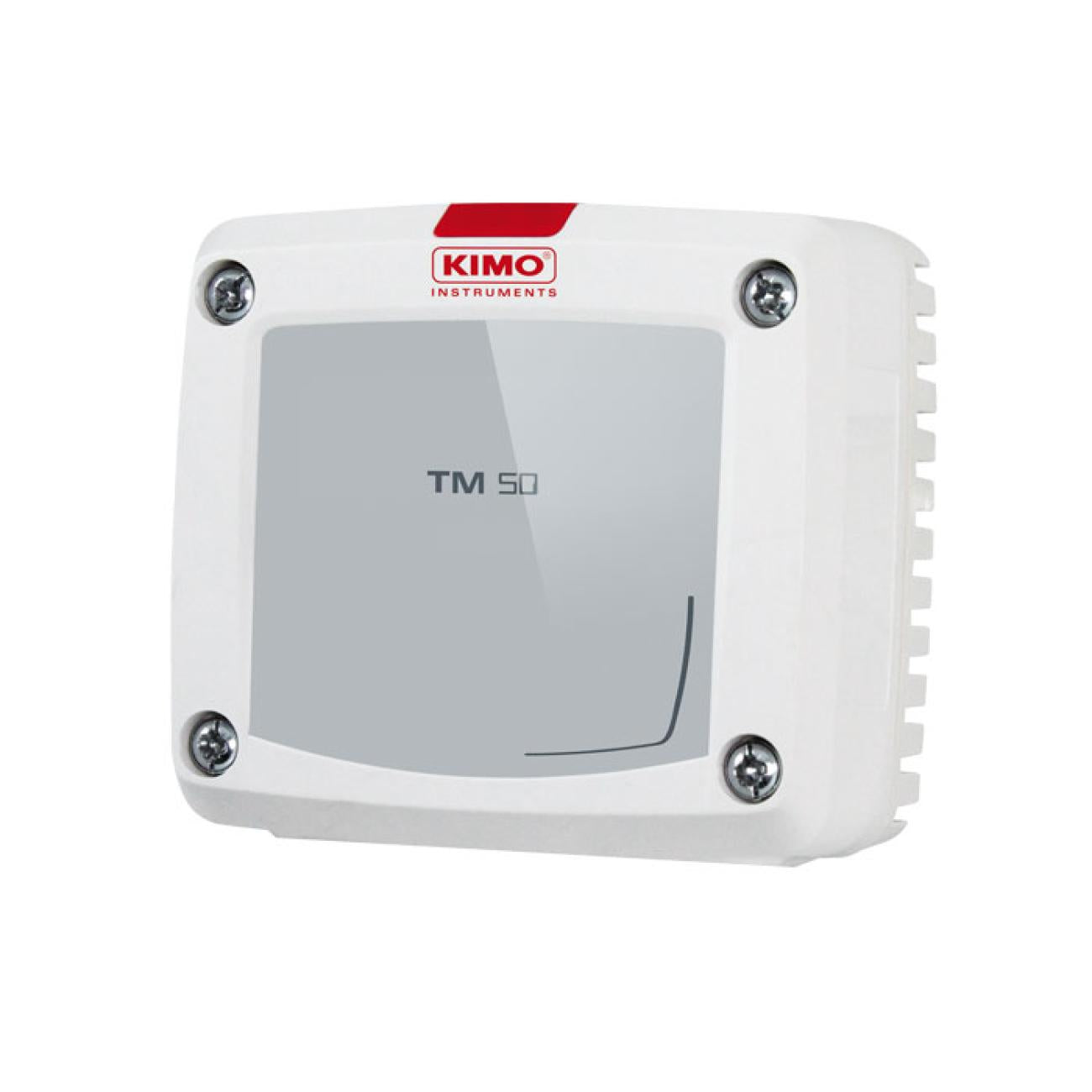

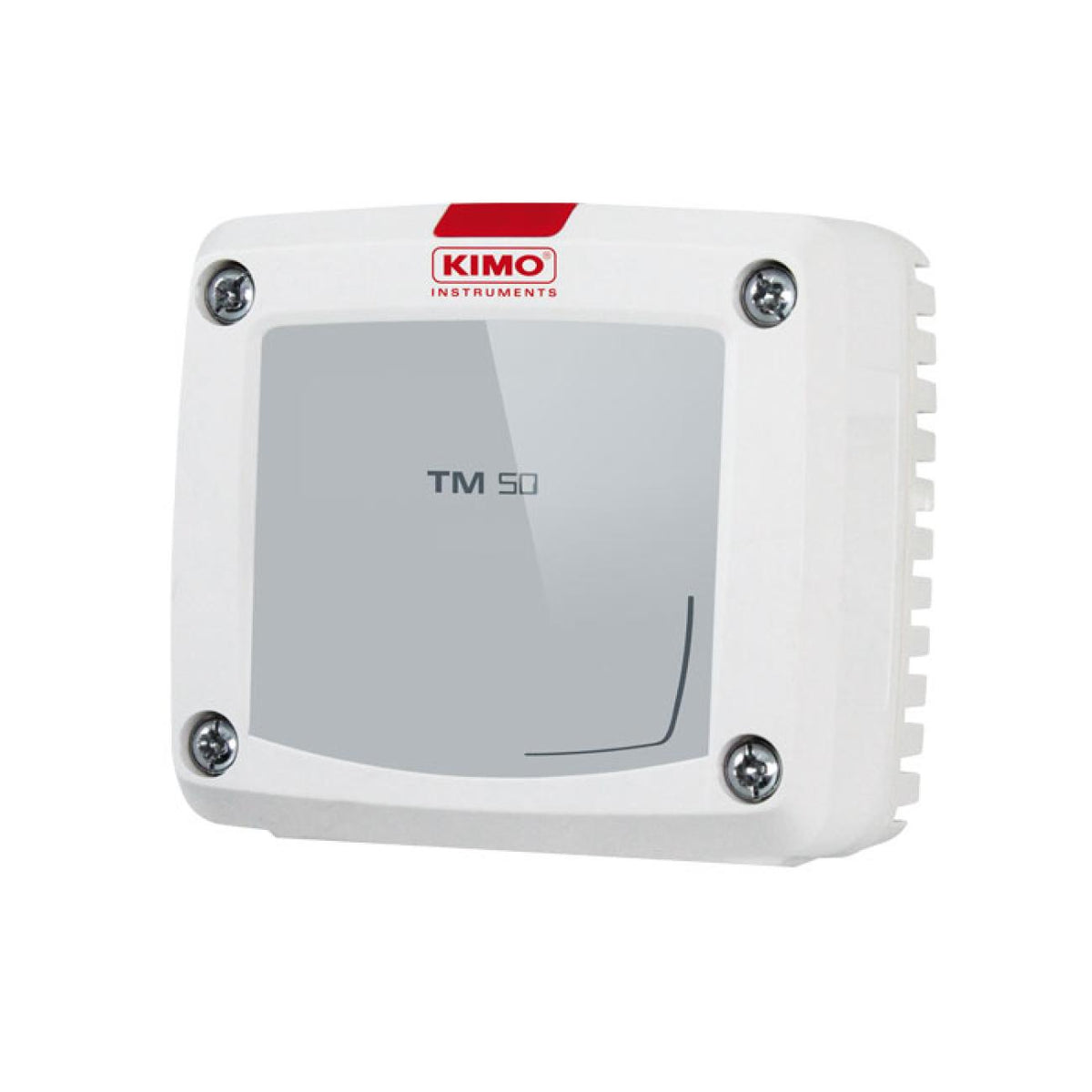

TM 50 Temperature sensor

Temperature Transmitter / Sensor

Kimo’s TM 50 is a temperature device that measures temperature from 0 to +50°C (ambient model), -20 to +80°C (air tight model).

Features

Range from 0 to 50 °C and from -20 to +80 °C

Pt100 2/3 wires output

Measure details

• Units
  °C

Technical details

• Parameters
  Temperature
• Displays
  No
• Standards
  UKCA
• Ethernet communication
  No
• ModBus network
  No

Instrument Dimensions

• Length
  90 mm
• Width
  46 mm
• Height
  109 mm
• Weight
  143 g



Operating temperature

• Min
  -20.00 °C
• Max
  80.00 °C

Storage temperature

• Min
  -20.00 °C
• Max
  80.00 °C

Datasheet TM 50
