Description

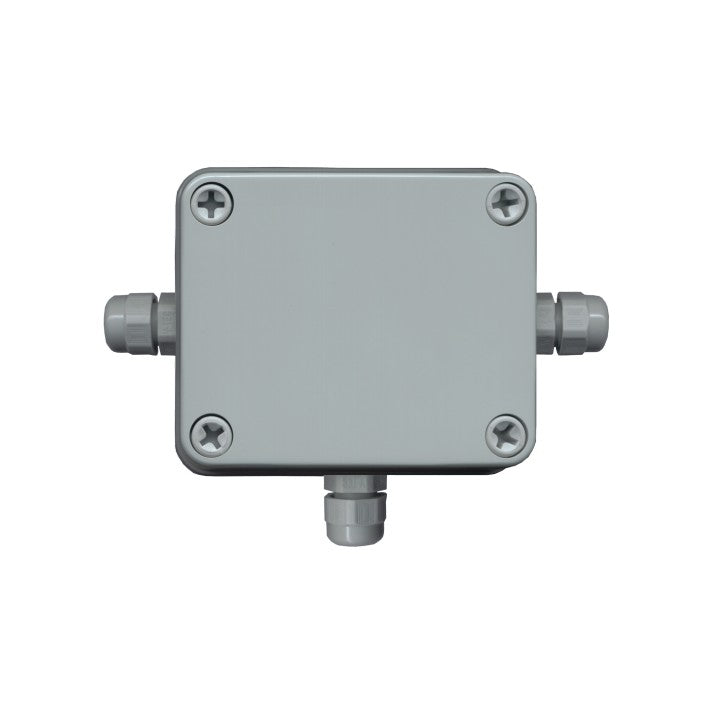

TRS-02a is designed for multipoint measurement of temperature by means of a standard Pt100 sensor. In particular it is designed for use with bayonet sensors to be used, for example, in smoke-houses. It may be used with any Pt100 sensors. This module features very good compensation of effect of connection cable resistance on the result of temperature measurement. Non-linear characteristics of the sensor is digitally linearized. It is equipped with RS-485 / Modus RTU communication interface.
Specification
| Number of inputs |
1
|
| Input type |
RTD
|
| Input range |
Pt100: -50…+550°C
|
| Output type |
no output
|
| Power supply |
9...12V DC
|
| Display |
no display
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Transmission parameters |
9600 bit/s, 8N1
|
| Operating temperature |
-40...+85°C
|
| Protection class |
IP 65
|
| Case material |
ABS
|
| Mounting |
wall
|
| Case dimensions |
80 x 82 x 55 mm
|
