Description

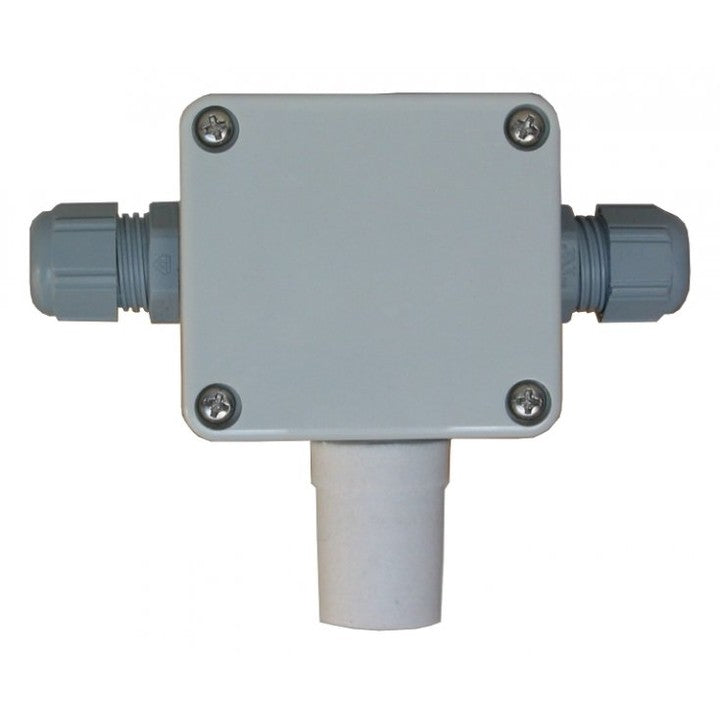

TRS-04a is designed for multipoint temperature and humidity measurement systems. In particular it is used for measuring conditions in rooms where food products are manufactured and stored. It is equipped with RS-485 / Modus RTU communication interface.
Specification
| Number of inputs |
1
|
| Input type |
integrated temperature & humidity probe
|
| Input range |
humidity: 0…100 % RH
temperature: 0...+70°C
|
| Output type |
no output
|
| Power supply |
9...12V DC
|
| Display |
no display
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Transmission parameters |
9600 bit/s, 8N1
|
| Operating temperature |
0...+70°C
|
| Protection class |
IP 40
IP 65
|
| Case material |
ABS
|
| Mounting |
wall
|
| Case dimensions |
64 x 58 x 35 mm
|
Files
| Data sheet | |
| Manual EN |
TRS-04a_INSSXEN_v.1.06.002.pdf |
| Declaration of accuracy | |
| Declaration of conformity | TRS-04a CE EN 2019.pdf |
