Description

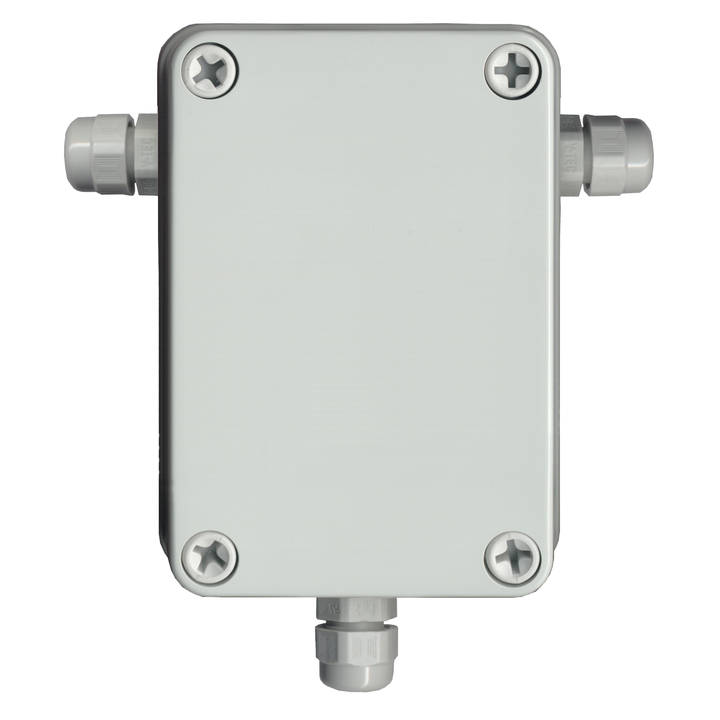

TRS-09a is a supporting power supply for the TRS System which supplies stabilized direct voltage 11,5V. It can work in two modes: as a controlled supply (switched on with external voltage 7...12V) or a non-controlled supply. The configuration is selected by means of a link. Current efficiency is 200 mA. The supply is resistant to output voltage short circuit. The device is located in a casing that completely protects it against dust or low pressure streams of water.
Specification
| Power supply |
230V AC
|
| Operating temperature |
0...+50°C
-20…+50°C
|
| Protection class |
IP 65
|
| Case material |
ABS
|
| Mounting |
wall
|
| Case dimensions |
110 x 80 x 67 mm
|
Files
| Data sheet | |
| Manual EN | |
| Declaration of accuracy | |
| Declaration of conformity |
