Description

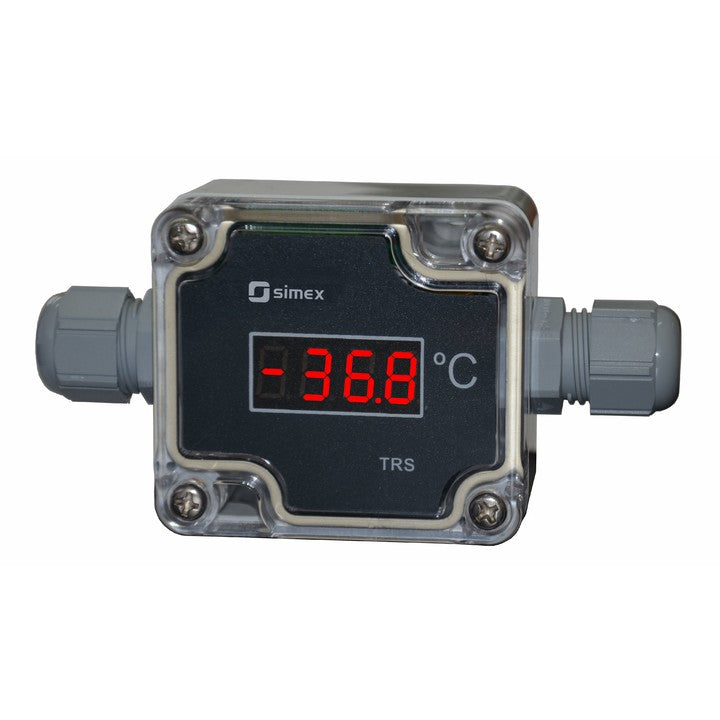

The TRS-10a is designed to display digital values and short, 4-letter messages. This superior system makes the display flicker when a displayed value is not refreshed. It is a slave device that communicates with the Master device via RS-485 interface with Modbus RTU protocol. The indicator is dedicated to the TRS Temperature Recording System, yet it can cooperate with any superior system equipped with RS-485 link with Modbus RTU protocol.
Specification
| Input type |
no input
|
| Output type |
no output
|
| Power supply |
9...12V DC
|
| Display |
LED, 4 x 9 mm, red
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Transmission parameters |
9600 bit/s, 8N1
|
| Operating temperature |
-40...+85°C
|
| Protection class |
IP 65
|
| Case material |
ABS
|
| Mounting |
wall
|
| Case dimensions |
64 x 58 x 35 mm
|
