Description

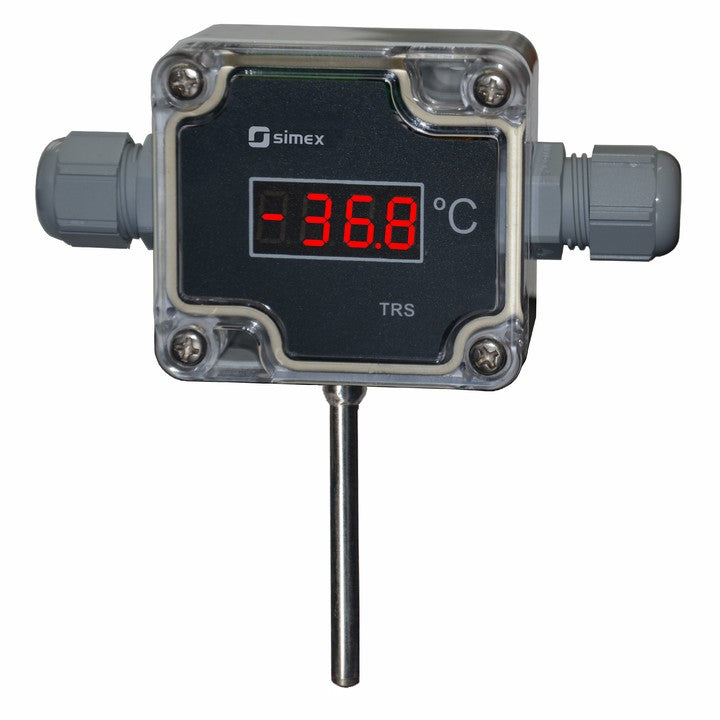

The TRS-11a is designed for multipoint temperature measurement within the range of -40°C up to +85°C. It is particularly designed to measure temperature in rooms where food products are manufactured and stored. A display located on the front panel enables the reading of current temperature and autonomous operation of the module (without a computer system). It is equipped with RS-485 / Modus RTU communication interface.
Specification
| Number of inputs |
1
|
| Input type |
integrated temperature probe (semiconductor integrated circuit)
|
| Input range |
temperature: -40...+85°C
|
| Output type |
no output
|
| Power supply |
9...12V DC
|
| Display |
LED, 4 x 9 mm, red
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Transmission parameters |
9600 bit/s, 8N1
|
| Operating temperature |
-40...+85°C
|
| Protection class |
IP 30
IP 65
|
| Case material |
ABS
|
| Case dimensions |
64 x 58 x 35 mm
|
Files
| Data sheet | |
| Manual EN |
TRS-11a_INSSXEN_v.1.10.002.pdf |
| Declaration of accuracy | |
| Declaration of conformity | TRS-11a CE EN 2019.pdf |
