Description

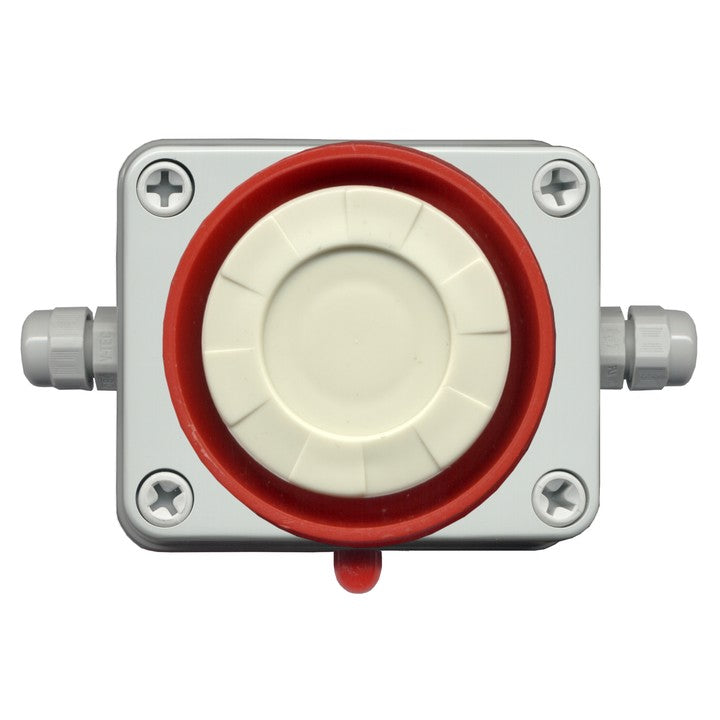

The TRS-B1a sound signal device is designed to signal events with a sound or light. It is controlled by means of RS-485 link, which allows for activating of the sound signal (a buzzer with variable tone) and/or light signal (a flickering diode). The module is dedicated to the TRS Temperature Recording System and it is equipped with RS-485 / Modus RTU communication interface. It can be used with other systems where the communication is consistent with the Modbus RTU standard.
Specification
| Input type |
no input
|
| Output type |
no output
|
| Power supply |
9...12V DC
|
| Display |
no display
|
| Communication Interface |
RS-485 / Modbus RTU
|
| Transmission parameters |
9600 bit/s, 8N1
|
| Operating temperature |
-40...+85°C
|
| Protection class |
IP 65
|
| Case material |
ABS
|
| Mounting |
wall
|
| Case dimensions |
64 x 66 x 90 mm
|
