Description

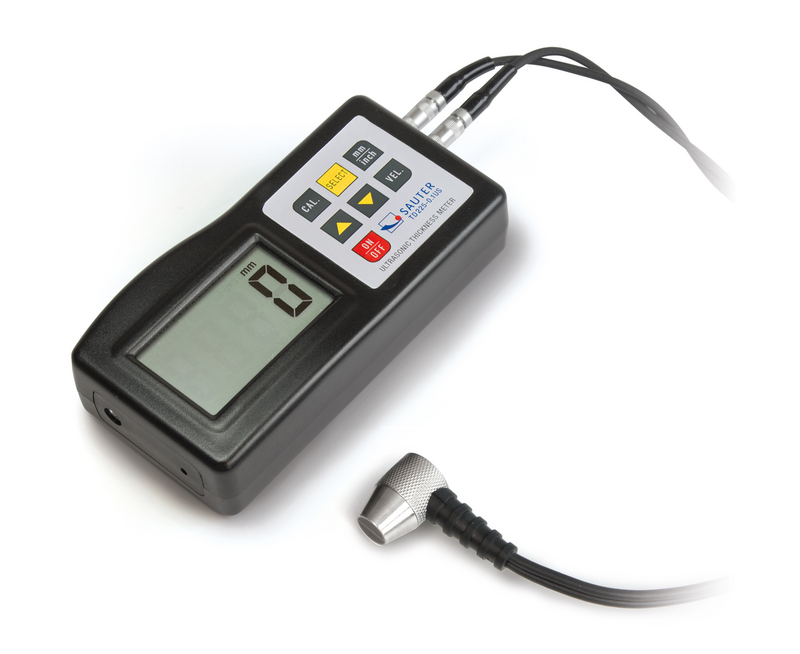

- External measuring head for difficult-to-access measuring points
- Data interface RS-232, included
- AUTO-OFF function to preserve the battery
- Selectable measuring units: mm inch
- Base plate for adjustment included
- Scope of delivery: Operating instructions, batteries, external measuring head (∅ 8 mm) and ultrasound contact gel

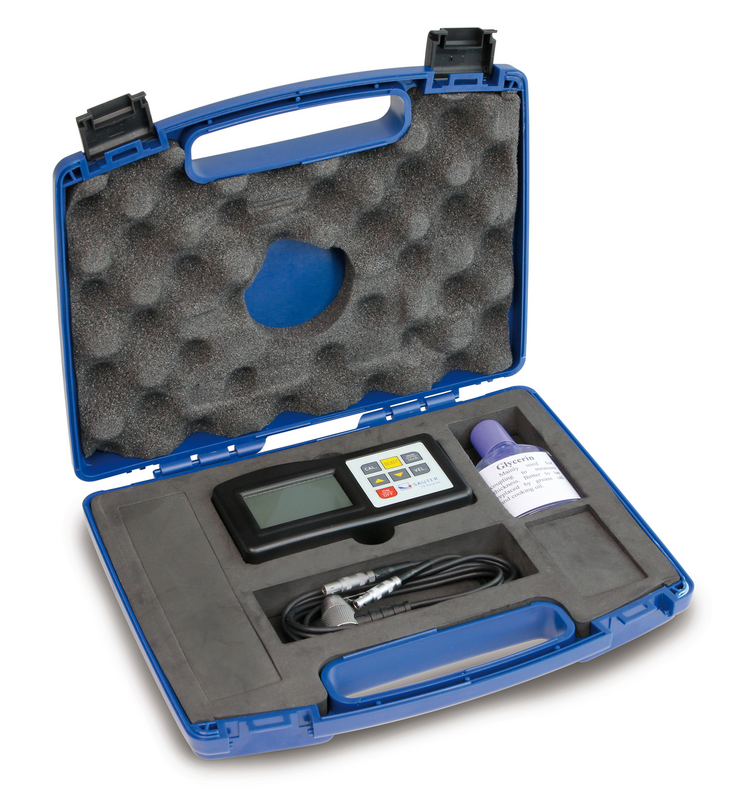

- Delivered in a robust carrying case
Technical Data
| Material thickness pulse-echo [Max] (mm) | 225 mm |
| Material thickness pulse-echo [Min] (mm) | 1,2 mm |
| Measuring range pulse-echo | 1,2 mm – 225 mm |
| Readability material thickness [d] (mm) | 0,1 mm |
| Tolerance (% of [Max]) | 0,5% |
| Units | mm, inch |
| Speed of sound [Max] (m/s) | 9999 m/s |
| Speed of sound [Min] (m/s) | 1000 m/s |
| Speed of sound | 1000 m/s – 9999 m/s |
| Measuring head measuring frequency | 5 MHz |
| Battery | 4×1.5 V AAA |
| Material housing | plastic |
| Dimensions completely mounted (W×D×H) | 30×65×120 mm |
| Cable length | 0,9 m |
