Overview

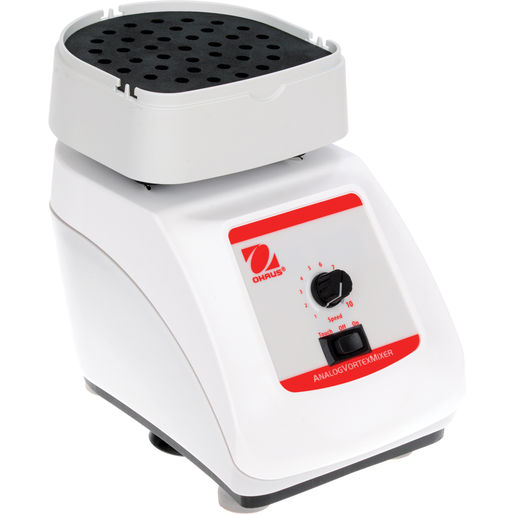

Four OHAUS Vortex Mixer models for gentle to high-speed reliable mixing. Non-digital model offers variable speed control, and digital model allows input of the exact speed and time to achieve repeatable results every time. Pulsing model features a unique pulse action that reduces heat generation, while providing more effective mixing and cell disruption. Fixed speed model offers simple one-touch, high-speed mixing for repeat applications.
Applications
Re-Suspending Liquids, Mixing Reagents, Buffers and Emulsions, ELISA Assay, Drug Extractions, Mixing Samples
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cup head and 3-inch accessory platform for beakers, flasks, test tubes etc. (included with all models), stainless steel microtube holder for 12 tubes (pulsing models)
Design Features
Microprocessor-control to maintain set speed for consistent mixing action (digital models)
Specifications
| Control | Fixed Speed |
| Duty Rating | Intermittent |
| Orbit | 0.2 in (4.9 mm) |
| Speed Range | 2800 rpm |
| Capacity | 0.5 kg |
| Timer | Not Applicable |
| Dimensions | 8.3 in x 6.5 in x 4.8 in (21 cm x 16.5 cm x 12.3 cm) (LxHxW) |
| Net Weight | 9.7 lb (4.4 kg) |
| Power | 230V, 0.6A, 50/60Hz |
| Power Consumption | 135 W |
| Safety Certification | CE; TUV |
| Working Environment | 39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing) |
