Laumas

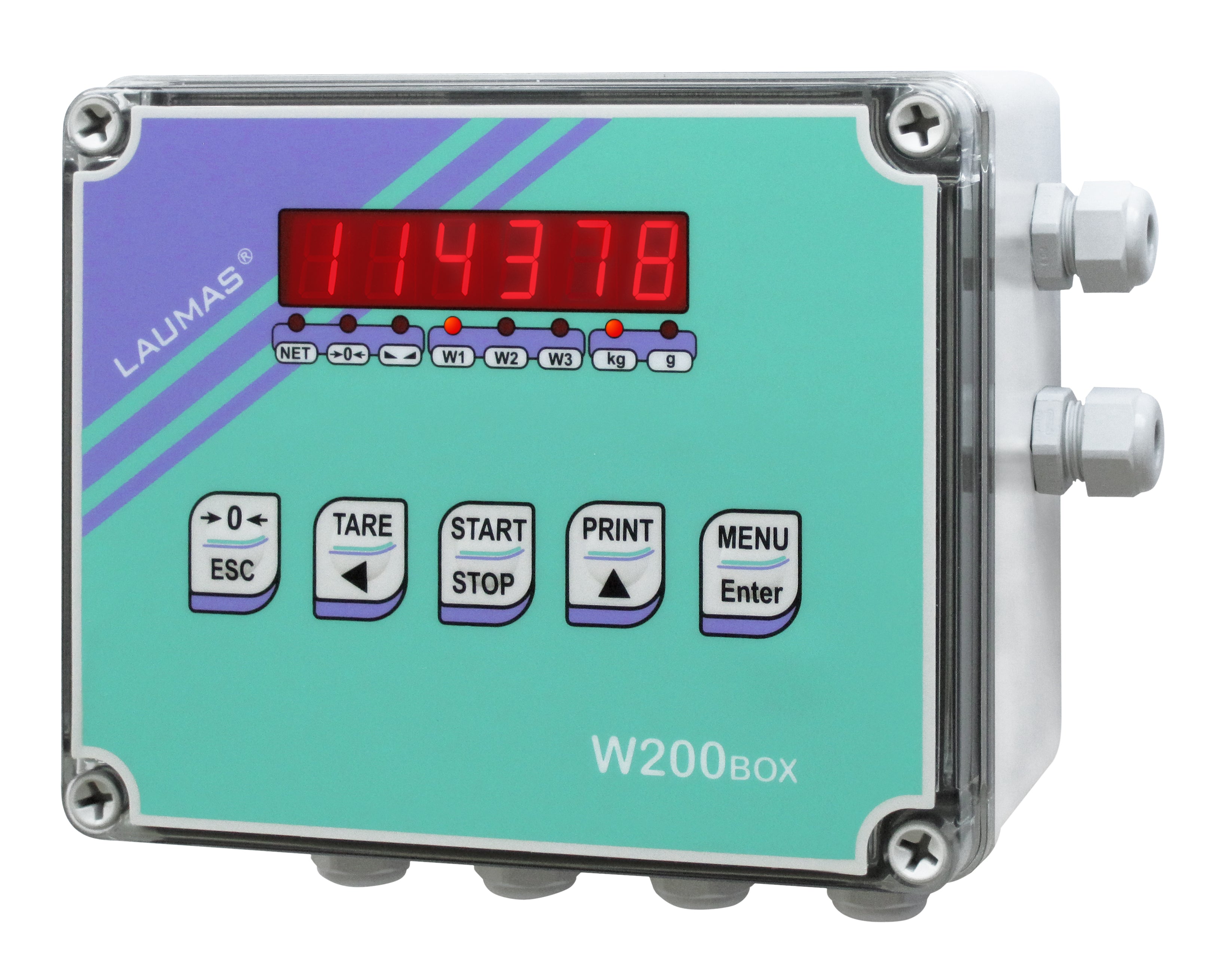

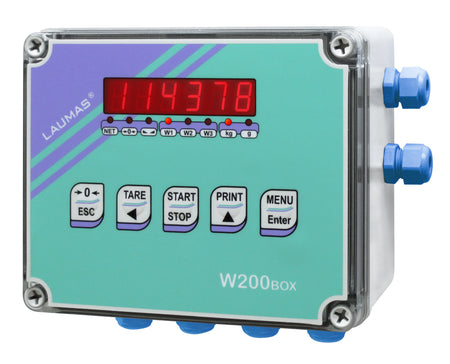

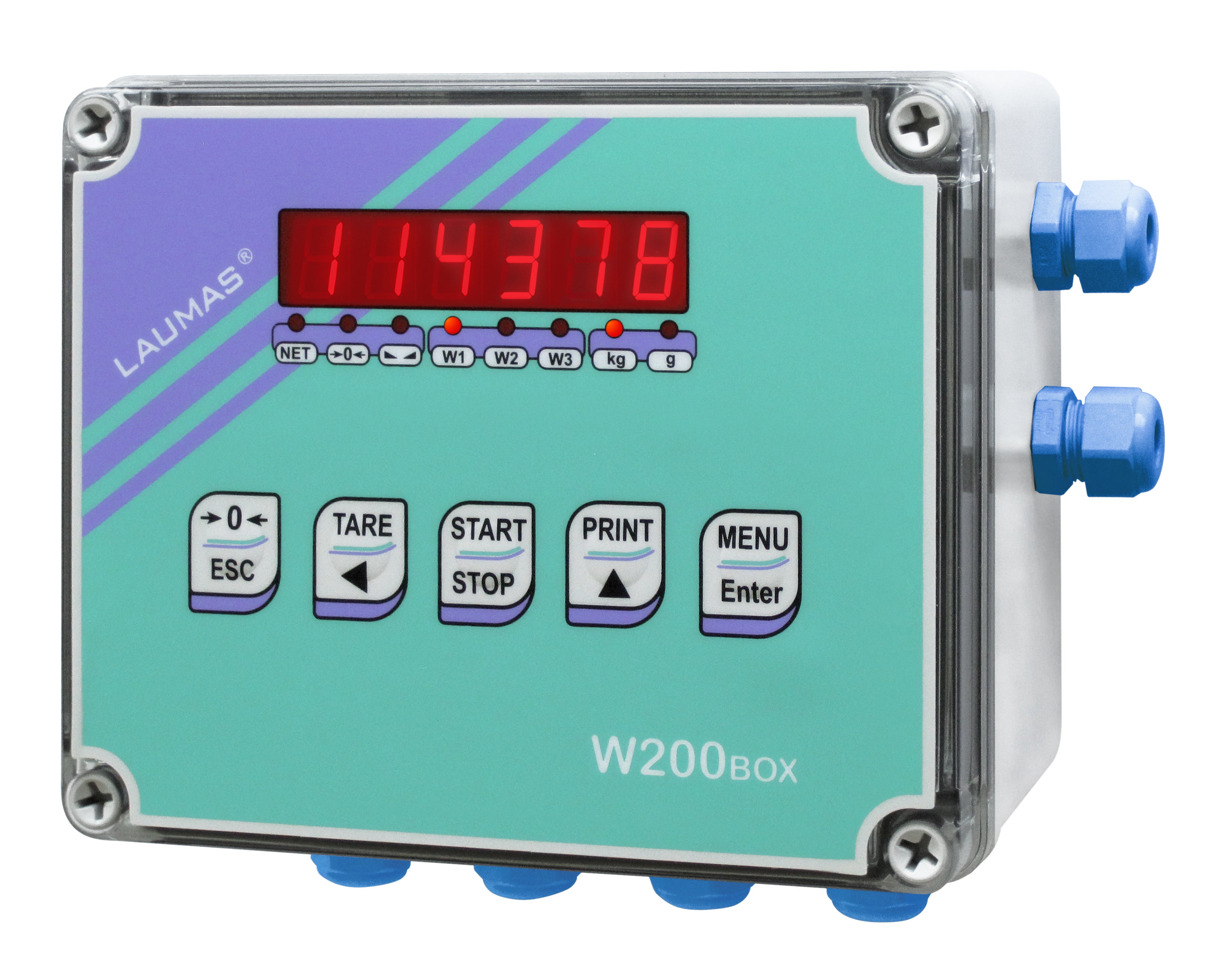

W200BOX Weight indicator into IP67 box (for weighing and batching)

SKU: W200BOXBAP
429.00 € (ex VAT)
Program
Options

GENERAL FEATURES

Weight indicator in IP67 polycarbonate box, dimensions 170 x 140 x 95 mm, four fixing holes Ø 4 mm (centre distance 152 x 122 mm), 6 M16x1.5 cable glands. Five-key membrane keyboard. Eight indicator led. Real time clock/calendar.
  • Wall mounting
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit red LED display, 14 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999

Some optional features:

  • 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
