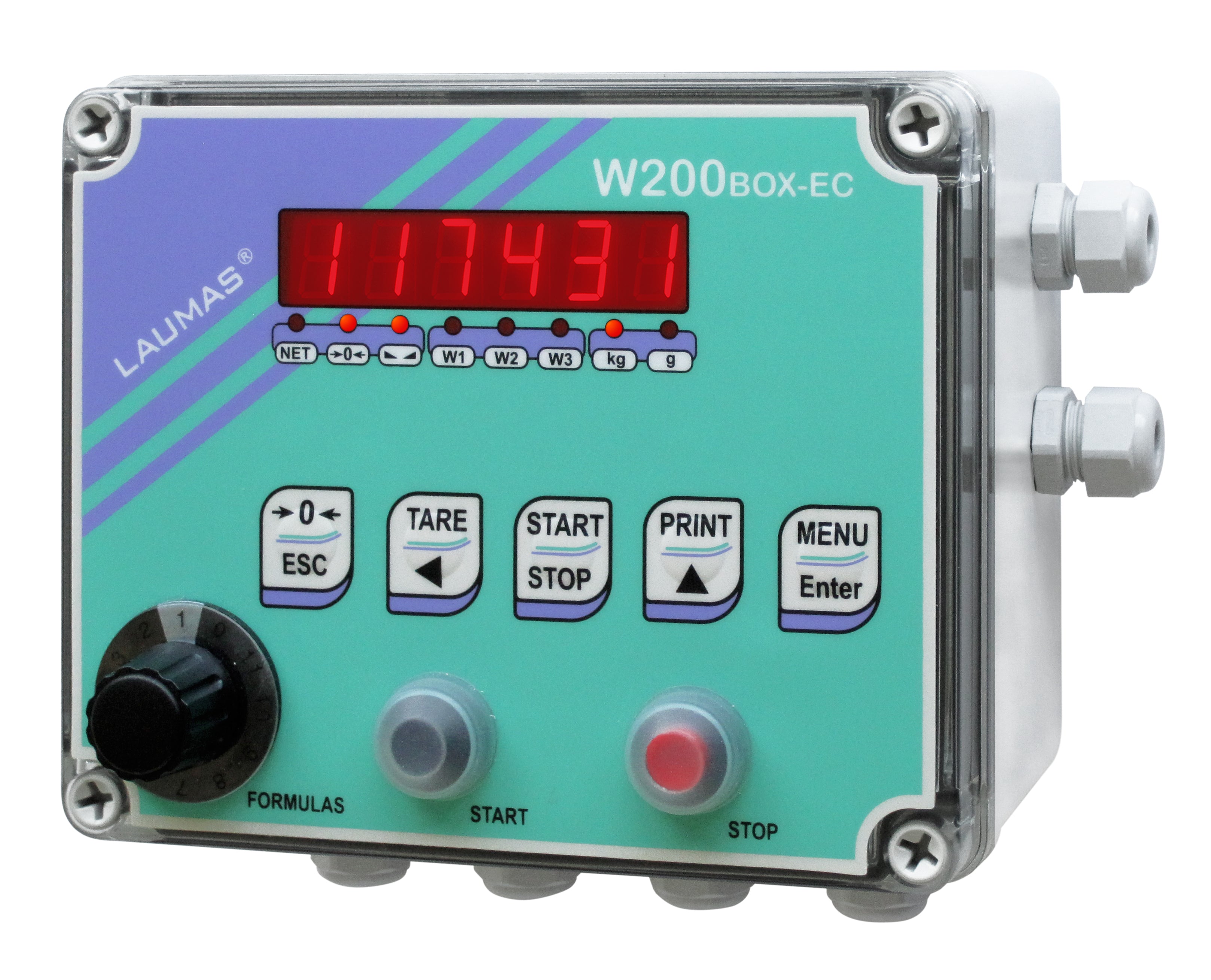

W200BOXEC Weight indicator into IP64 box (for weighing and batching)
Regular price
519.00 € (ex VAT)
GENERAL FEATURES
Weight indicator in IP64 polycarbonate box, dimensions 170 x 140 x 95 mm, four fixing holes Ø 4 mm (centre distance 152 x 122 mm), 6 M16x1.5 cable glands. Five-key membrane keyboard. Eight indicator led. Real time clock/calendar.
- Wall mounting
- External selector switch for setpoint groups or formulas selection
- Start and stop buttons
- Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
- Six-digit red LED display, 14 mm height
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
- Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
Some optional features:
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
Files
Data sheet
Manuals available on request
W200BOX-B manual W200BOX-B CE-M approved legal for trade - installer manual W200BOX-B CE-M approved legal for trade - user manual W200BOX-C (load) manual W200BOX-C (load) CE-M approved legal for trade - installer manual W200BOX-C (load) CE-M approved legal for trade - user manual W200BOX-S (unload) manual W200BOX-S (unload) CE-M approved legal for trade - installer manual W200BOX-S (unload) CE-M approved legal for trade - user manual W200BOX-3-6-14 prod. manual W200BOX-3-6-14 prod. CE-M approved legal for trade - installer manual W200BOX-3-6-14 prod. CE-M approved legal for trade - user manual W200BOX-MU (multiprogram) - additional manual for the installer Options for series W - manual Protocols for series W - manual Protocols for series W CE-M approved - manual Labelling machine for series W - manual
