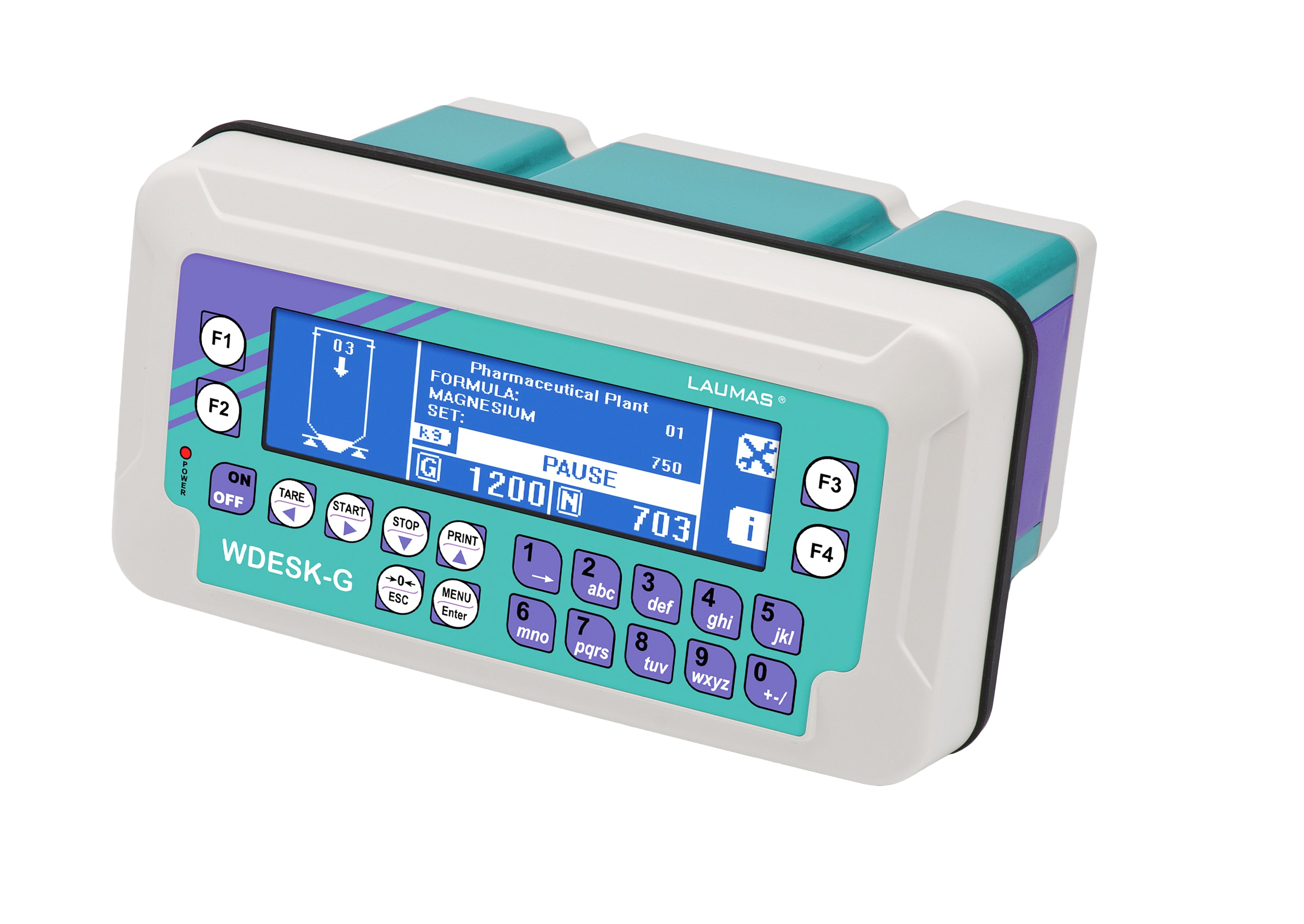

WDESK-G IP67 Weight Indicator (for weighing and batching)

SKU: WDESKGBD
523.00 € (ex VAT)
Program
Options

GENERAL FEATURES

ABS Weight Indicator, dimensions 122 x 226 x 164 mm. IP67 protection rating. 21-key membrane keyboard. Real time clock/calendar.
Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal board/connectors.

Multilanguage software

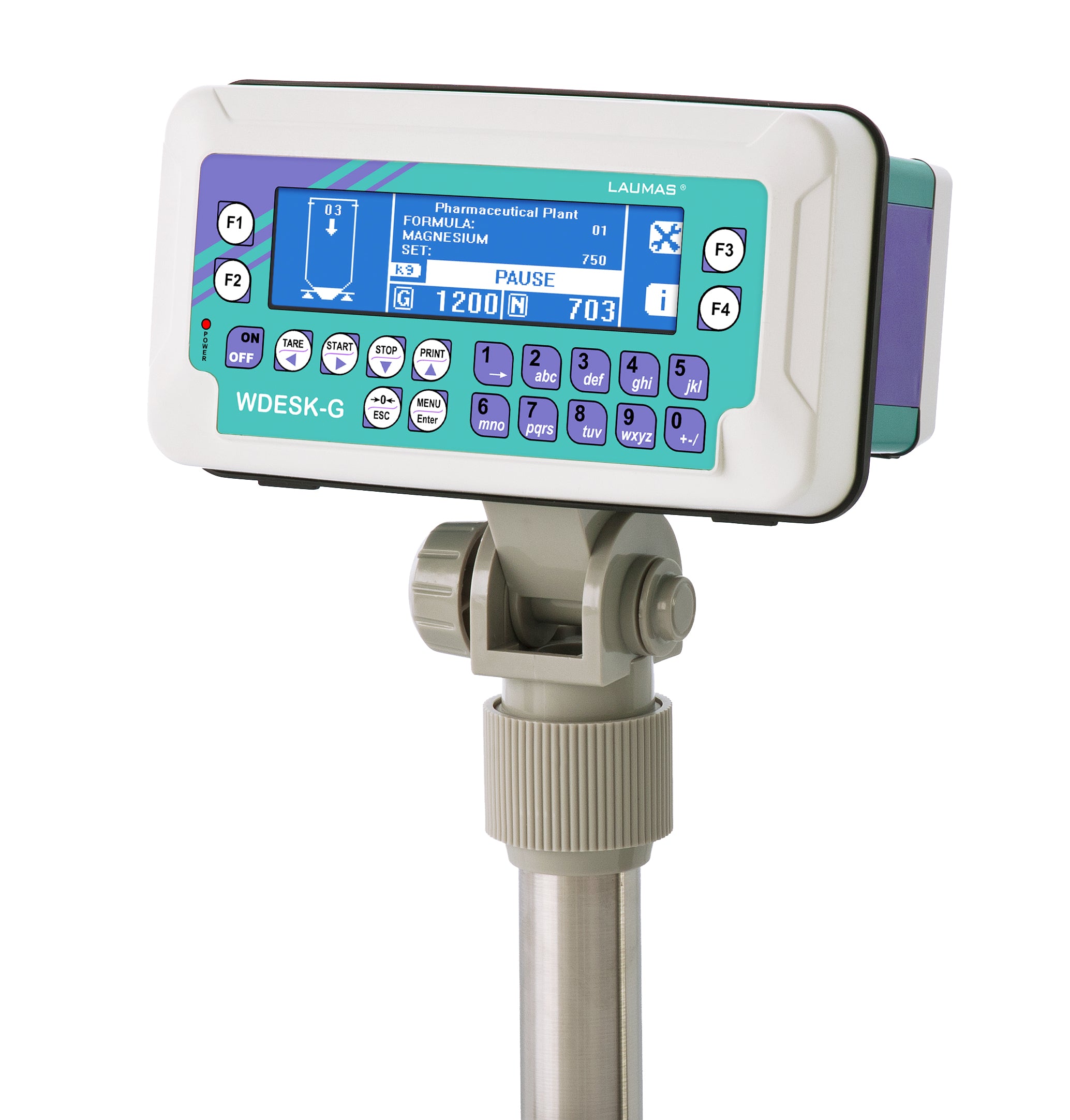

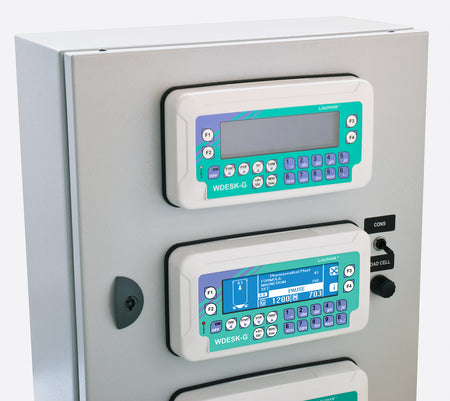

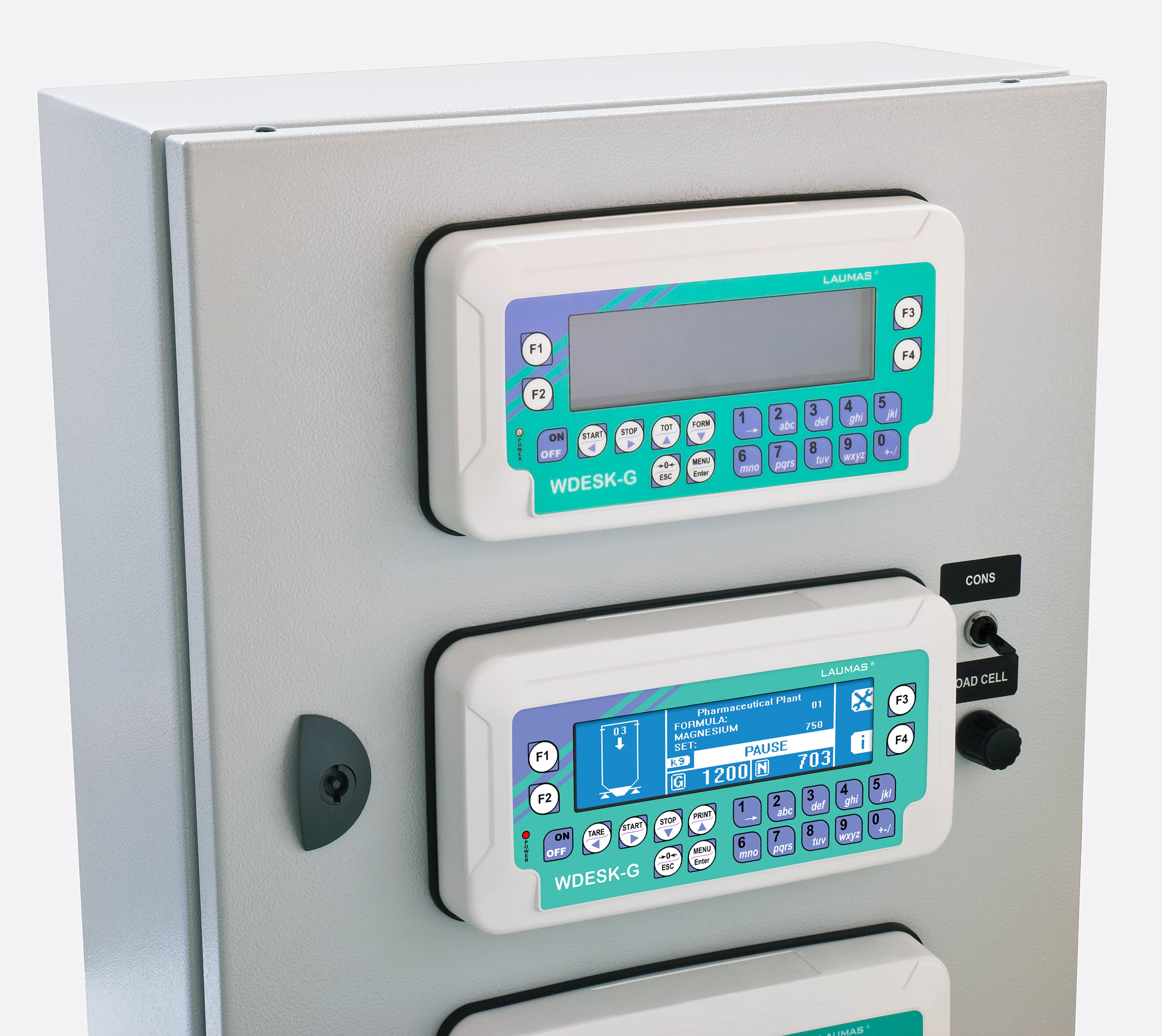

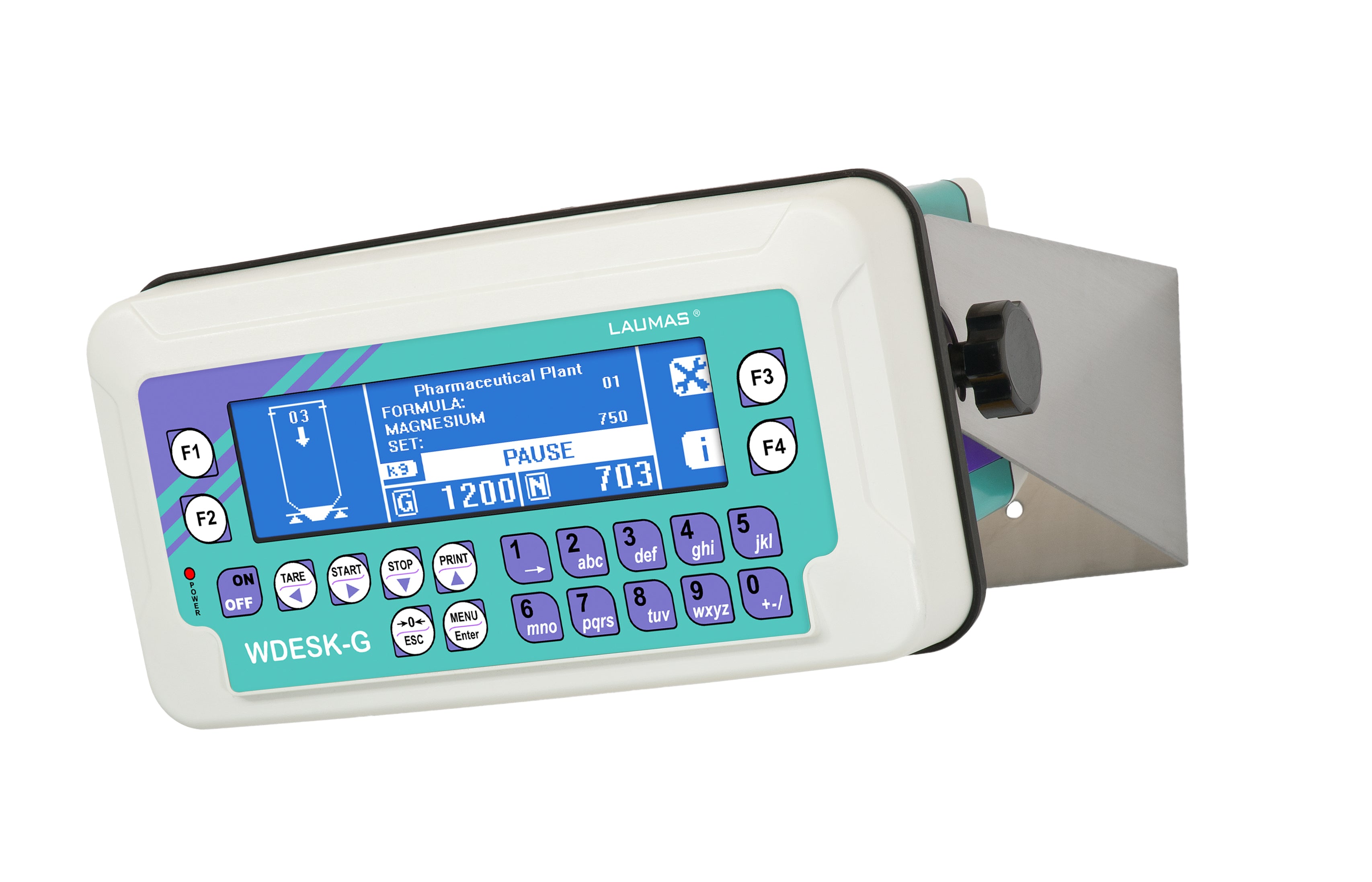

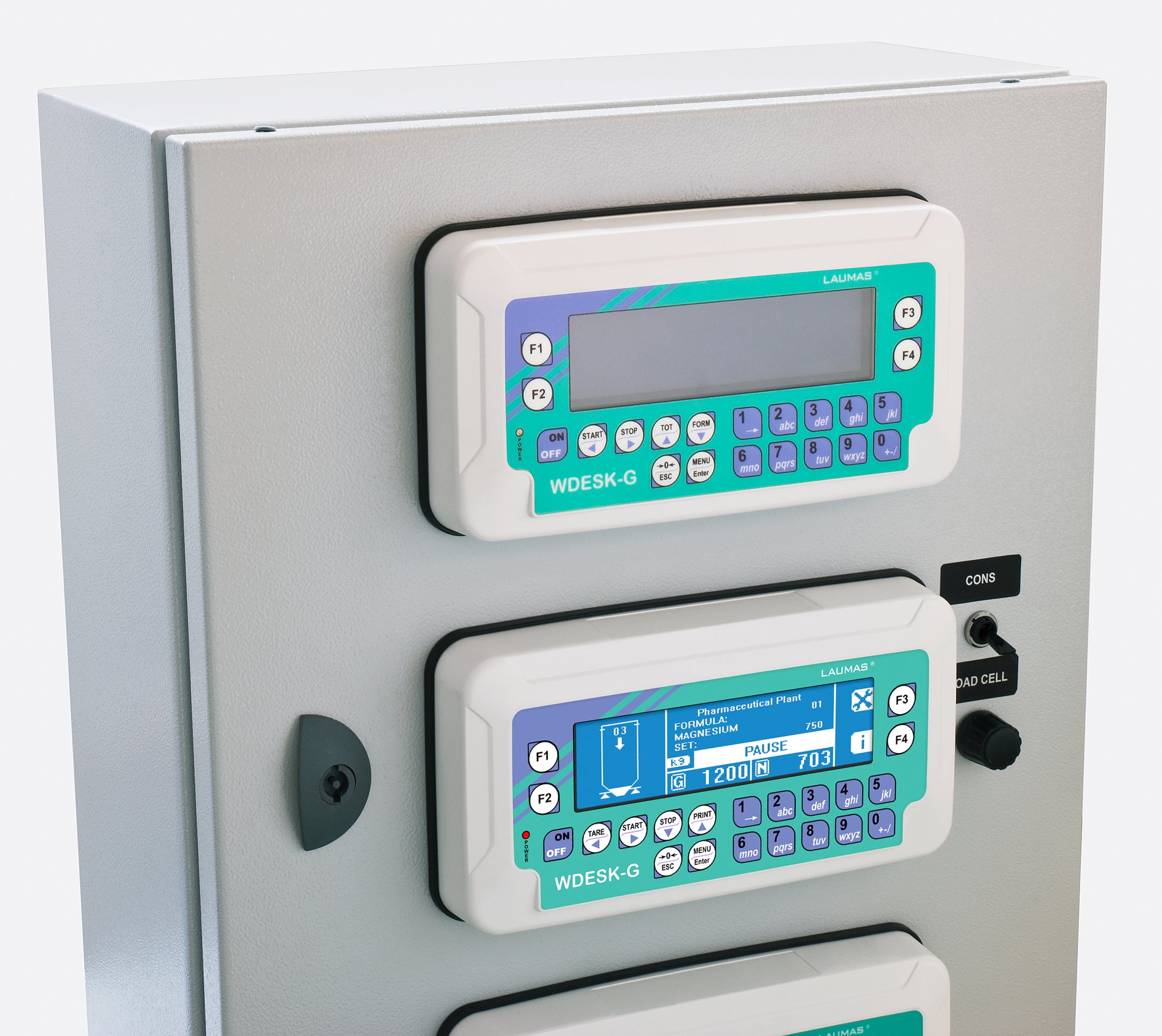

  • Possible installations: wall, panel, column, desk
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Backlit LCD graphic display, 133x39 mm, 240x64 pixel
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999

Some optional features:

  • Data storage on USB pen drive
  • Barcode reader and PC keyboard management via USB
  • ATEX II 3GD version
  • 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V

Files



Data sheet Data sheet



Manuals available on request



WDESKG-B manual WDESKG-B manual

WDESKG-B CE-M approved (legal for trade) – installer manual WDESKG-B CE-M approved (legal for trade) – installer manual

WDESKG-B CE-M approved (legal for trade) – user manual WDESKG-B CE-M approved (legal for trade) – user manual

WDESKG-C (load) manual WDESKG-C (load) manual

WDESKG-C (load) CE-M approved legal for trade – installer manual WDESKG-C (load) CE-M approved legal for trade – installer manual

WDESKG-C (load) CE-M approved legal for trade – user manual WDESKG-C (load) CE-M approved legal for trade – user manual

WDESKG-S (unload) manual WDESKG-S (unload) manual

WDESKG-S (unload) CE-M approved legal for trade – installer manual WDESKG-S (unload) CE-M approved legal for trade – installer manual

WDESKG-S (unload) CE-M approved legal for trade – user manual WDESKG-S (unload) CE-M approved legal for trade – user manual

WDESKG-3-6-14 prod. manual WDESKG-3-6-14 prod. manual

WDESKG-3-6-14 prod. CE-M approved legal for trade – installer manual WDESKG-3-6-14 prod. CE-M approved legal for trade – installer manual

WDESKG-3-6-14 prod. CE-M approved legal for trade – user manual WDESKG-3-6-14 prod. CE-M approved legal for trade – user manual

WDESKG-MU (multiprogram) - additional manual for the installer WDESKG-MU (multiprogram) - additional manual for the installer

Options for series W - manual Options for series W - manual

Protocols for series W - manual Protocols for series W - manual

Protocols for series W CE-M approved - manual Protocols for series W CE-M approved - manual

Labeling machine for series W - manual Labeling machine for series W - manual
