GENERAL FEATURES

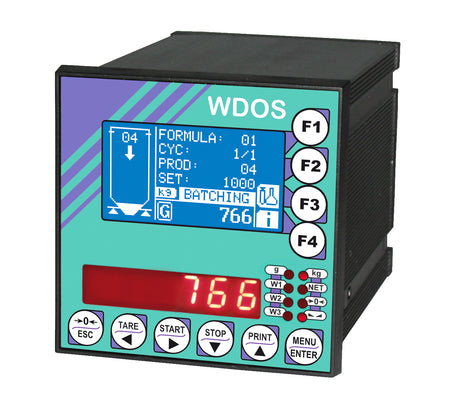

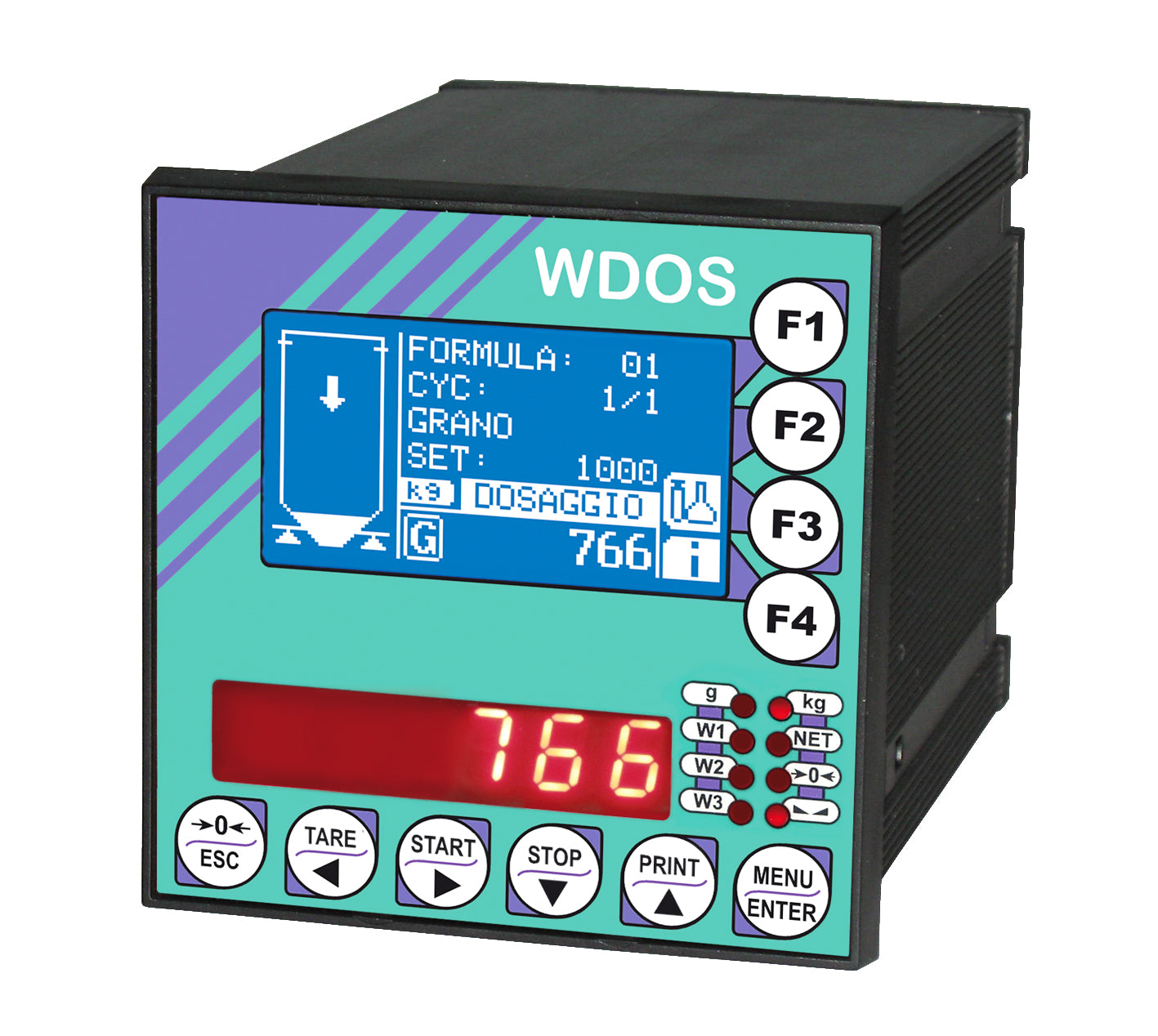

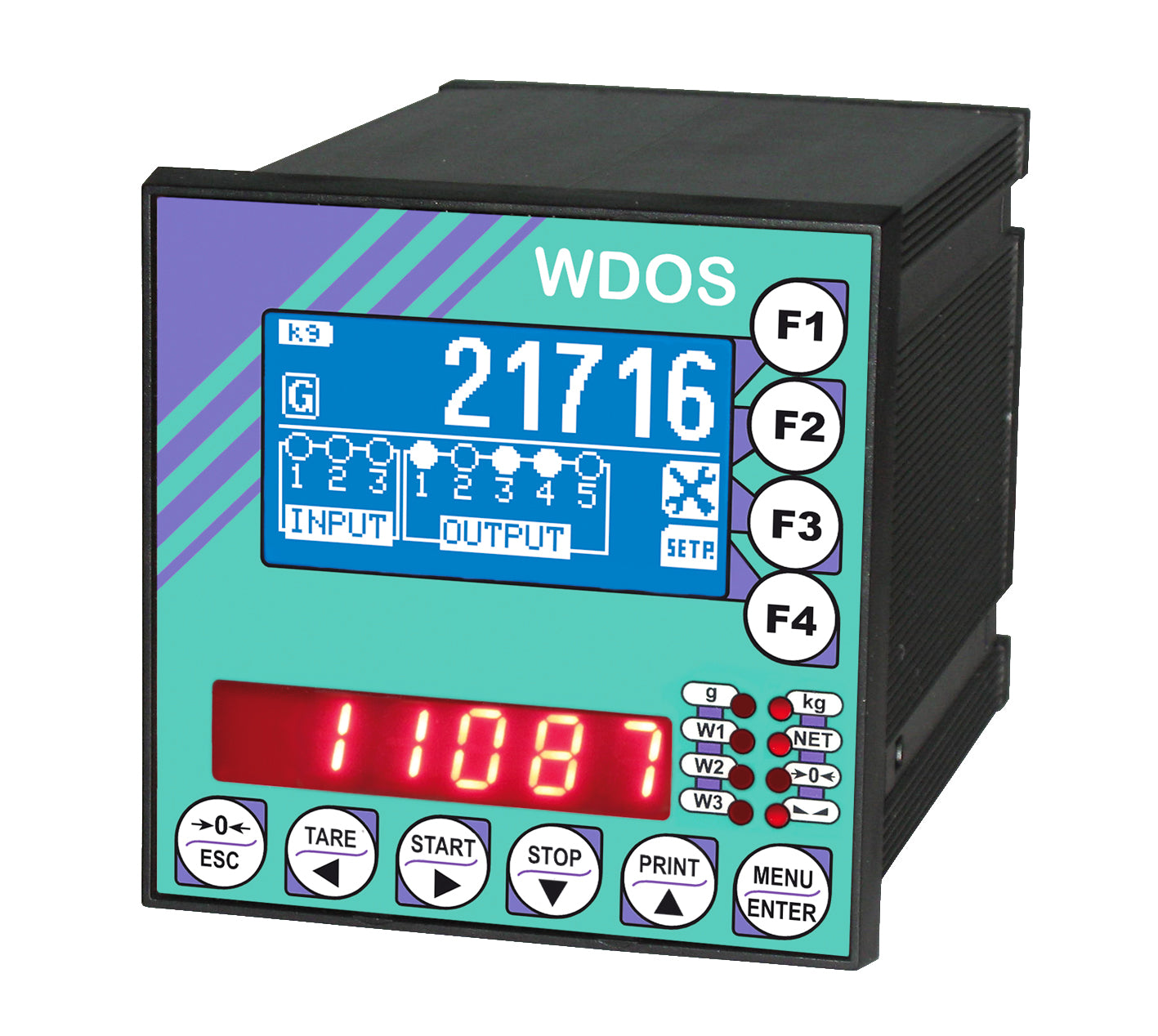

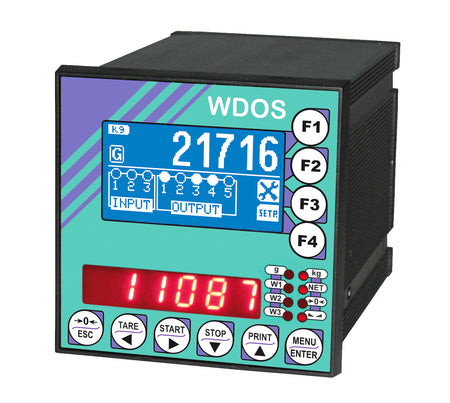

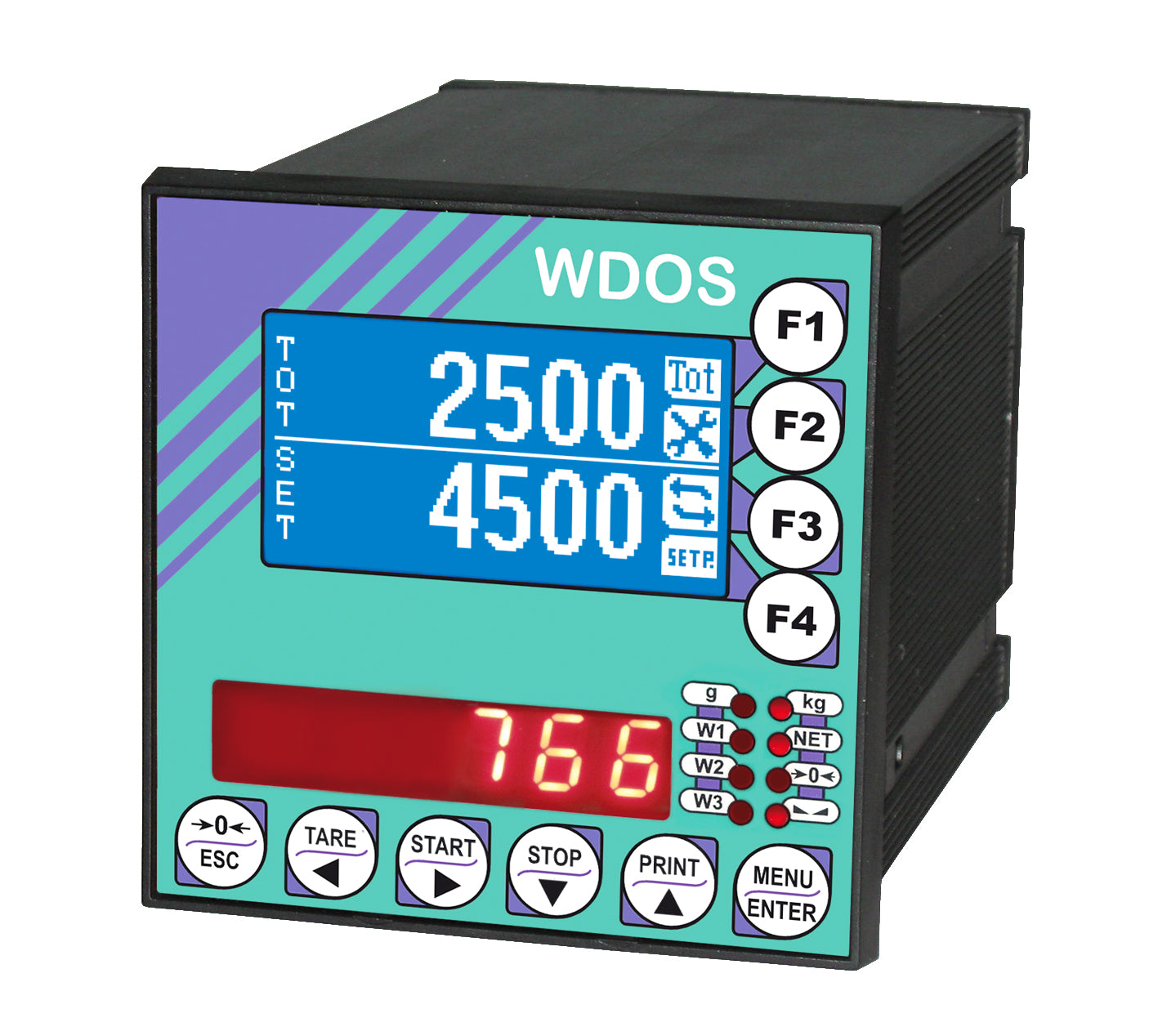

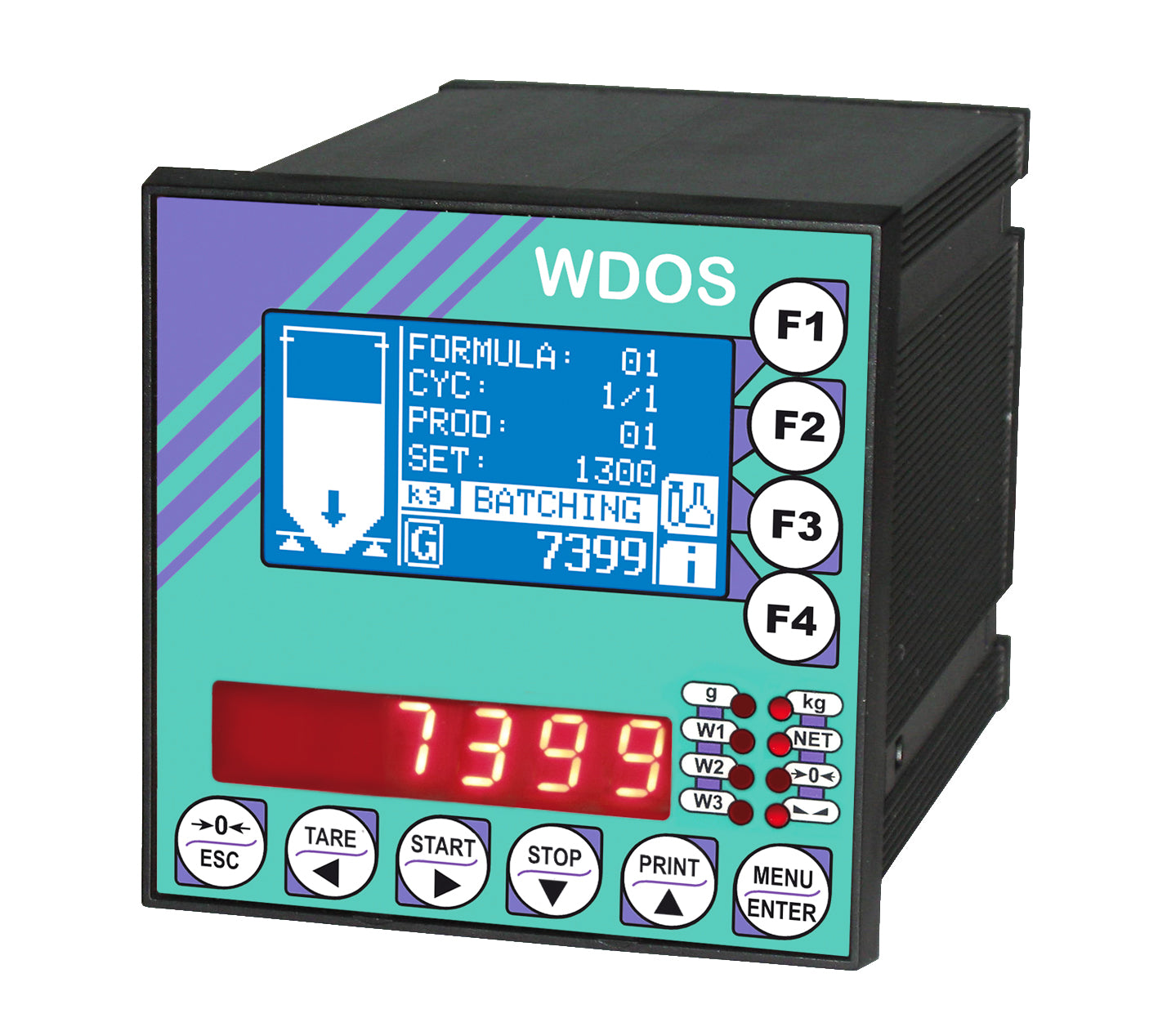

Weight Indicator in DIN case, dimensions 96 x 96 x 130 mm. IP54 front panel protection. Ten-key membrane keyboard. Eight indicator led. Real time clock/calendar.
Multilanguage software
- Panel mounting
- Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
- Backlit graphic LCD display, 60x32 mm, 128x64 pixels
- Six-digit red LED display, 10 mm height
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
- Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
Some optional features:
- Data storage on USB pen drive
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
