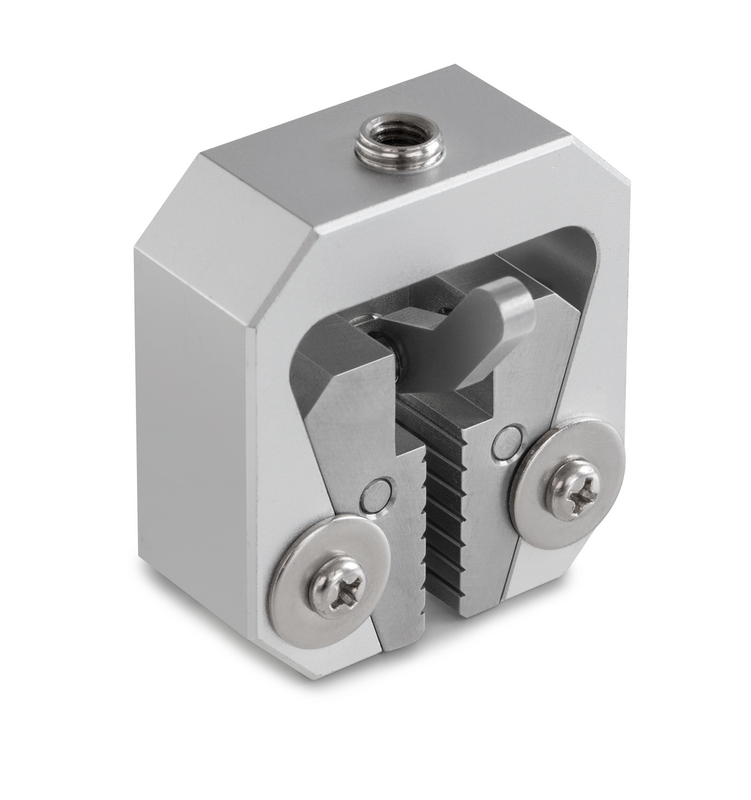

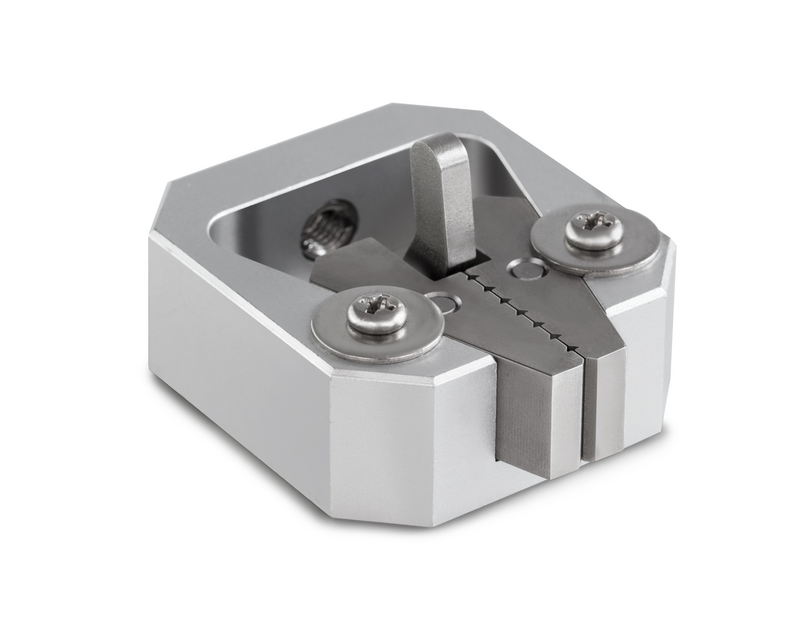

Wedge tension clamp
Technical Data
| Tensile/compressive force [Max] | 500 N |
| Maximum clamp width | 14 mm |
| Clamping width | 6 mm |
| Material | aluminium |
| Net weight | 0,16 kg |
| Mounting - force dissipation | Threaded hole M6 |
| Dimensions completely mounted (W×D×H) | 49×53×20 mm |
