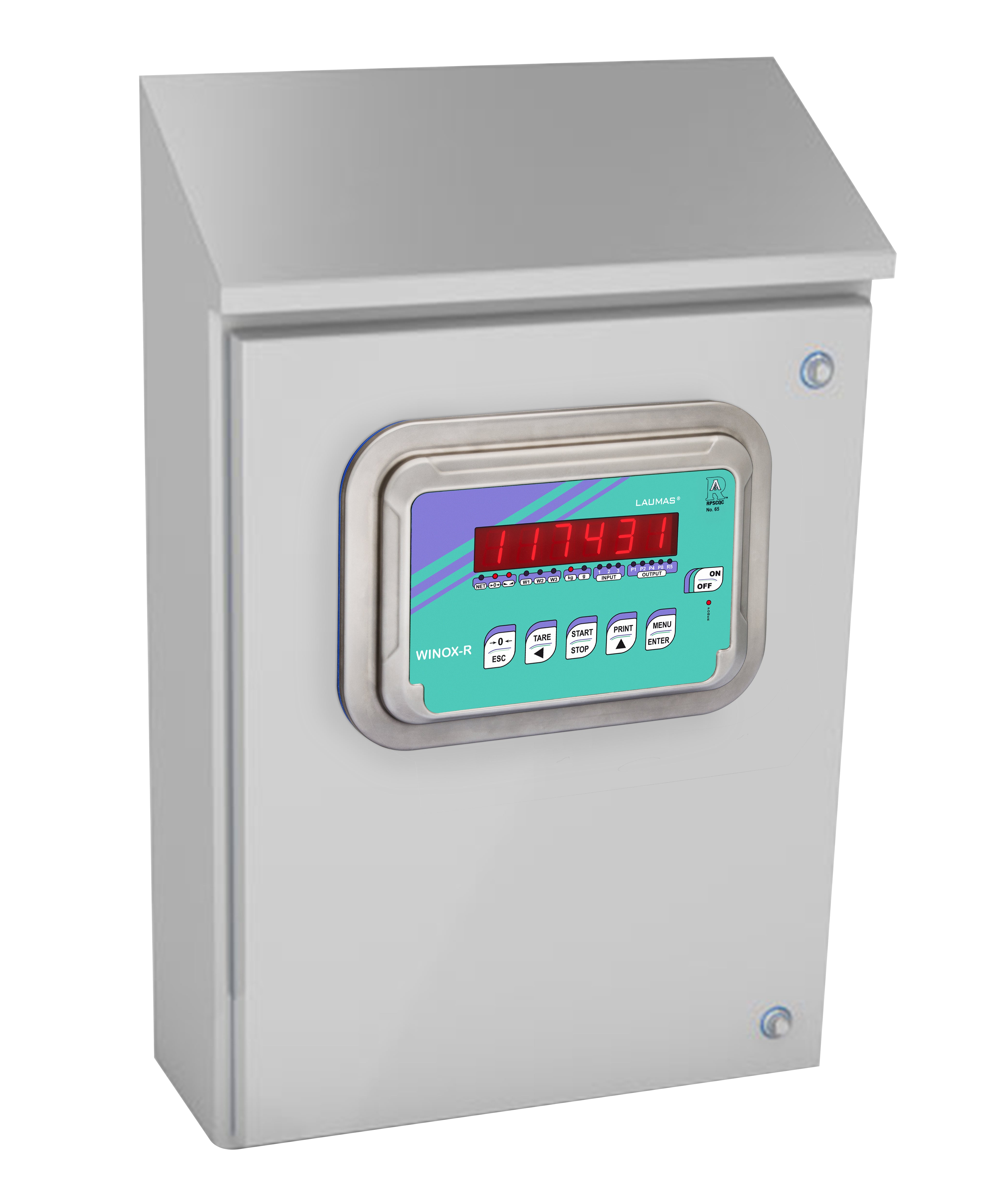

WINOX-R 3A Stainless steel hygienic weight indicator (for weighing and batching)

SKU: WINOXRBQ3A
508.00 € (ex VAT)
Program
Options

GENERAL FEATURES

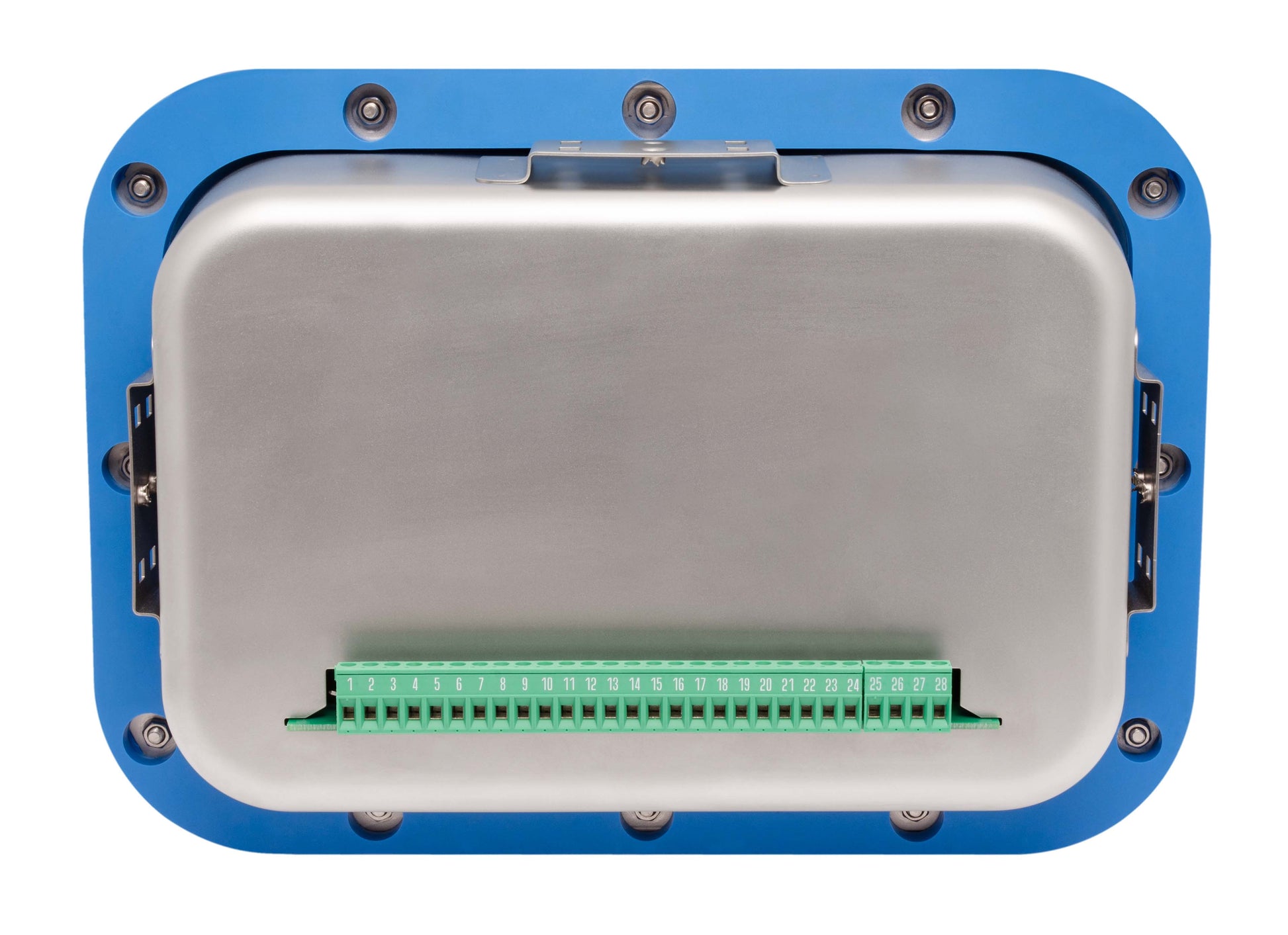

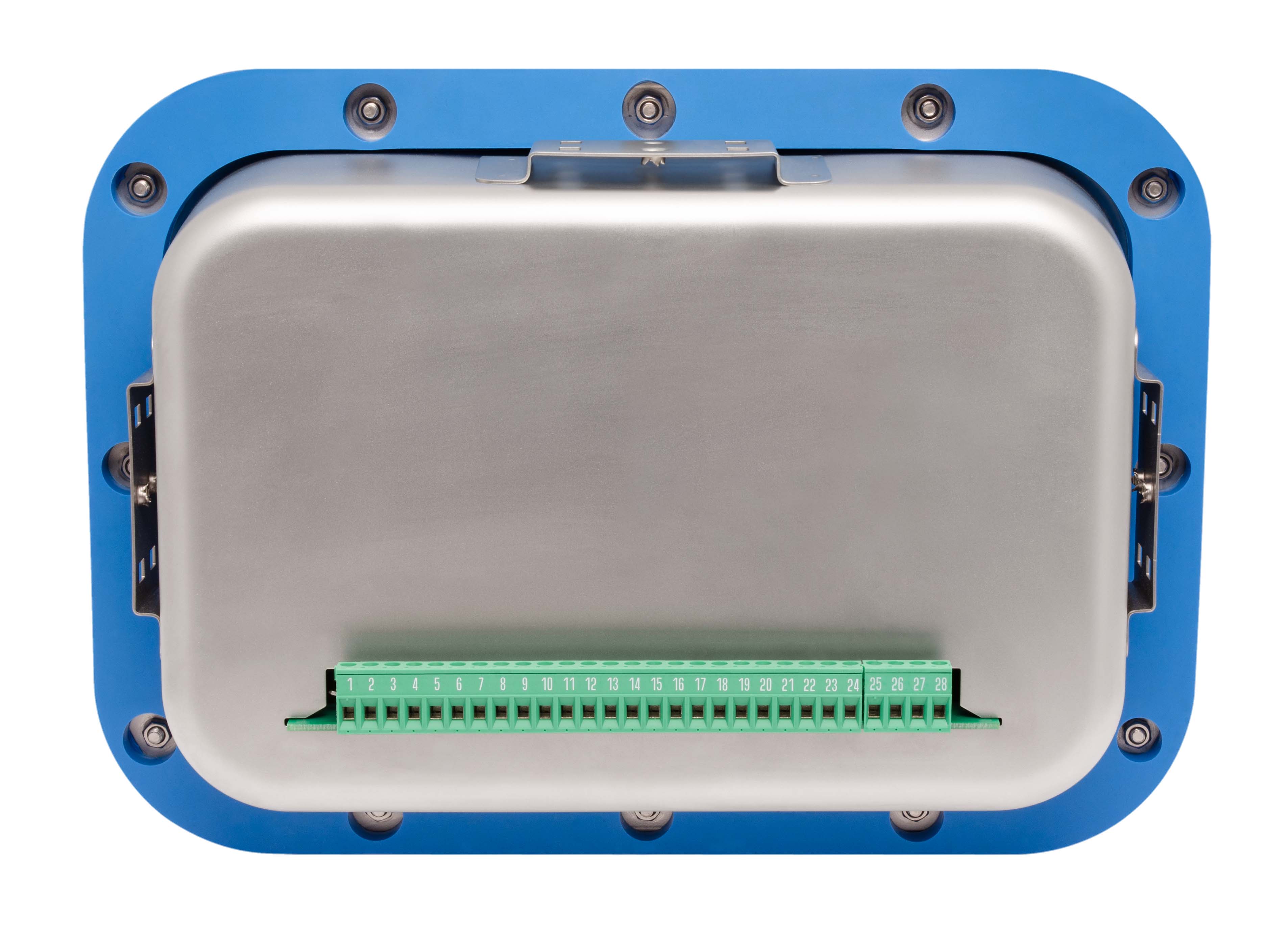

AISI 304 stainless steel hygienic Weight Indicator, dimensions 286 x 206 x 96 mm. IP69K front panel protection rating. Six-key membrane keyboard. Real time clock/calendar. Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal board/connectors.
Certified 3-A Sanitary Standards.
  • Hygienic device RPSCQC authorized by 3-A SSI
  • Panel mounting
  • Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
  • Six-digit red LED display, 20 mm height, 16 indicator LED
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 3 logic inputs, 5 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
  • Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999

Some optional features:

  • Data storage on USB pen drive
  • ATEX II 3GD version
  • 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V

Files



Data sheet Data sheet



Manuals available on request

WINOX-L/R 3A - Installation and maintenance instructions WINOX-L/R 3A - Installation and maintenance instructions

WINOXLR-B manual WINOXLR-B manual

WINOXLR-B CE-M approved legal for trade - installer manual WINOXLR-B CE-M approved legal for trade - installer manual

WINOXLR-B CE-M approved legal for trade - user manual WINOXLR-B CE-M approved legal for trade - user manual

WINOXLR-C (load) manual WINOXLR-C (load) manual

WINOXLR-C (load) CE-M approved legal for trade - installer manual WINOXLR-C (load) CE-M approved legal for trade - installer manual

WINOXLR-C (load) CE-M approved legal for trade - user manual WINOXLR-C (load) CE-M approved legal for trade - user manual

WINOXLR-S (unload) manual WINOXLR-S (unload) manual

WINOXLR-S (unload) CE-M approved legal for trade - installer manual WINOXLR-S (unload) CE-M approved legal for trade - installer manual

WINOXLR-S (unload) CE-M approved legal for trade - user manual WINOXLR-S (unload) CE-M approved legal for trade - user manual

WINOXLR-3-6-14 prod. manual WINOXLR-3-6-14 prod. manual

WINOXLR-3-6-14 prod. CE-M approved legal for trade - installer manual WINOXLR-3-6-14 prod. CE-M approved legal for trade - installer manual

WINOXLR-3-6-14 prod. CE-M approved legal for trade - user manual WINOXLR-3-6-14 prod. CE-M approved legal for trade - user manual

WINOXLR-MU (multiprogram) - additional manual for the installer WINOXLR-MU (multiprogram) - additional manual for the installer

Options for series W - manual Options for series W - manual

Protocols for series W - manual Protocols for series W - manual

Protocols for series W CE-M approved - manual Protocols for series W CE-M approved - manual

Labeling machine for series W - manual Labeling machine for series W - manual
