GENERAL FEATURES

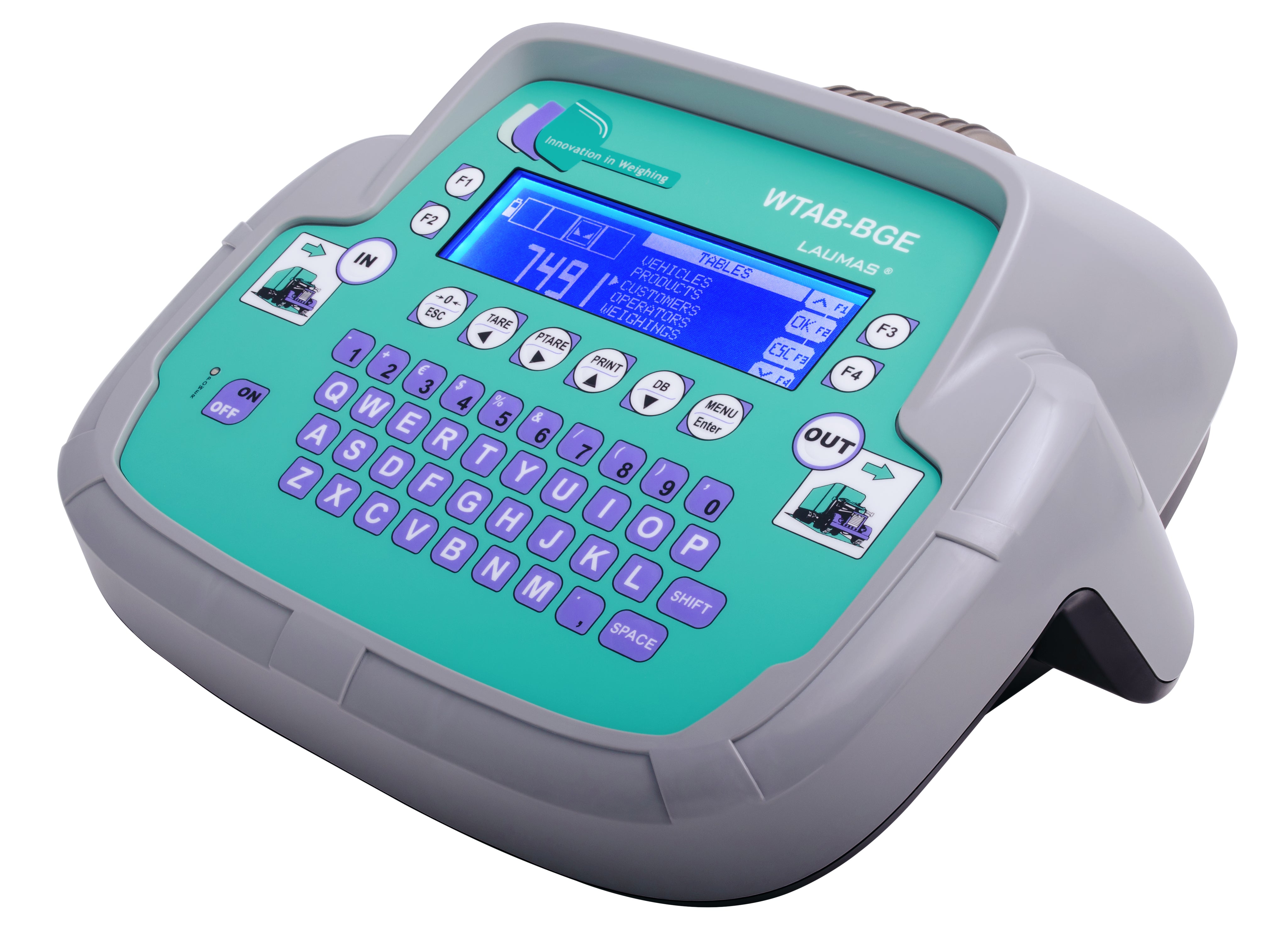

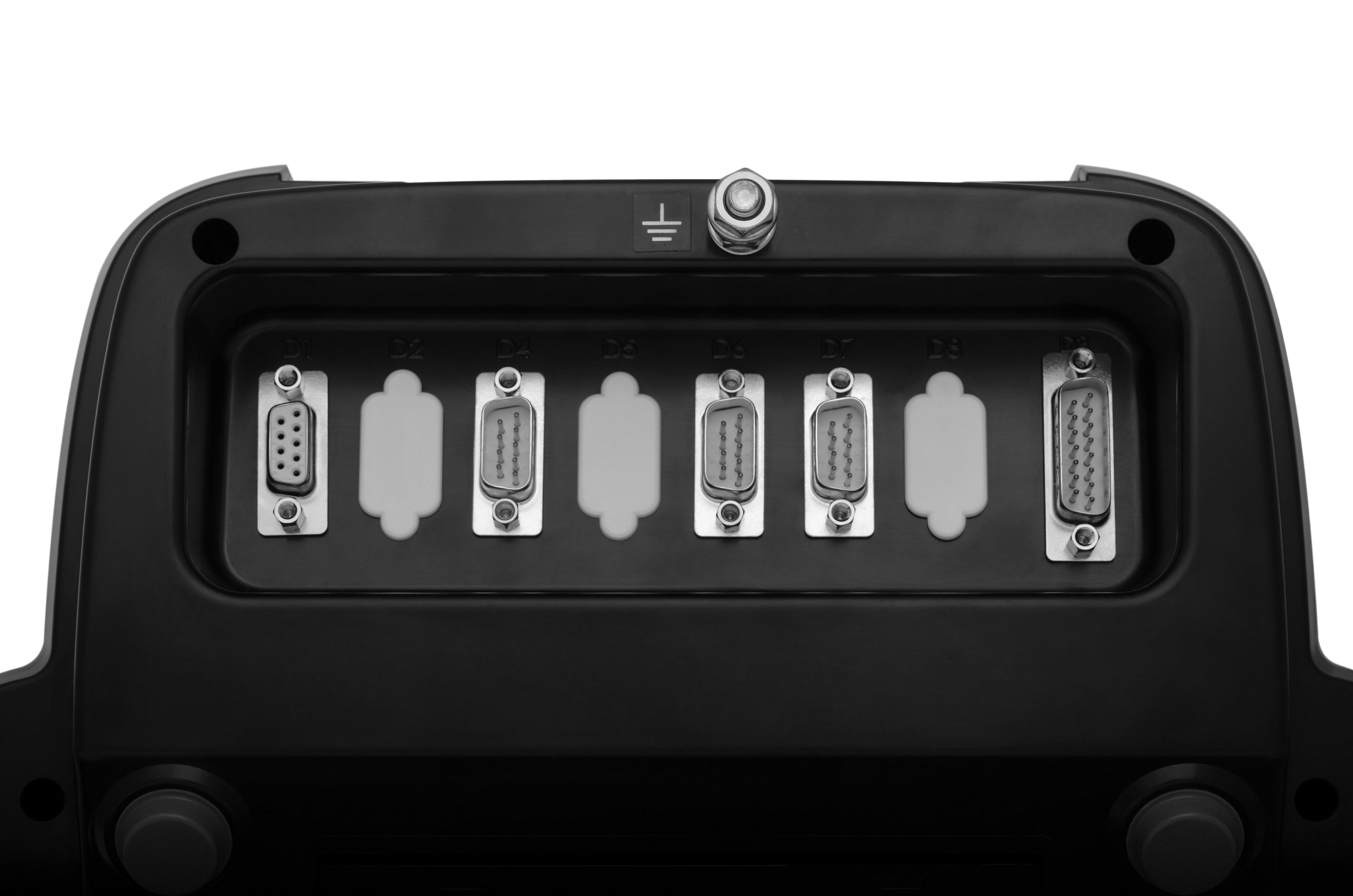

ABS Weight Indicator, dimensions 315 x 315 x 170 mm. IP40 protection rating (D-SUB connectors). 52-key membrane keyboard. Real time clock/calendar.
- Ideal for desk mounting, ergonomic design
- Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Database with 500 vehicles (license plates, predetermined tare), products, customers and operators. Barcode reader management with printing and call-out of the open weighing ID. Up to 10000 weighings that can be saved in alibi memory. Traffic light management via relay outputs.
- Backlit graphic LCD display, 133x39 mm, 240x64 pixels
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- 2 USB ports, 1 Ethernet TCP/IP port
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

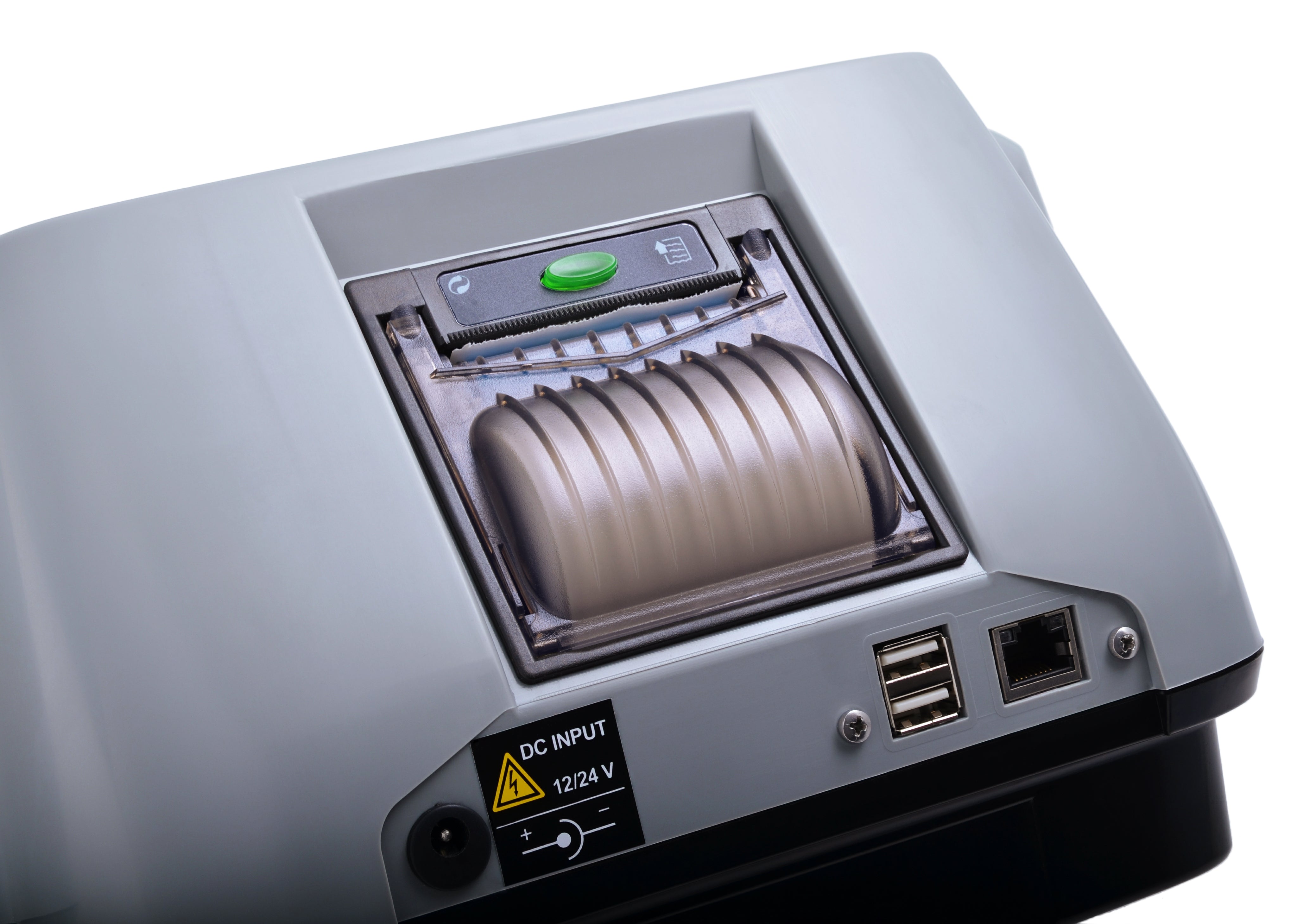

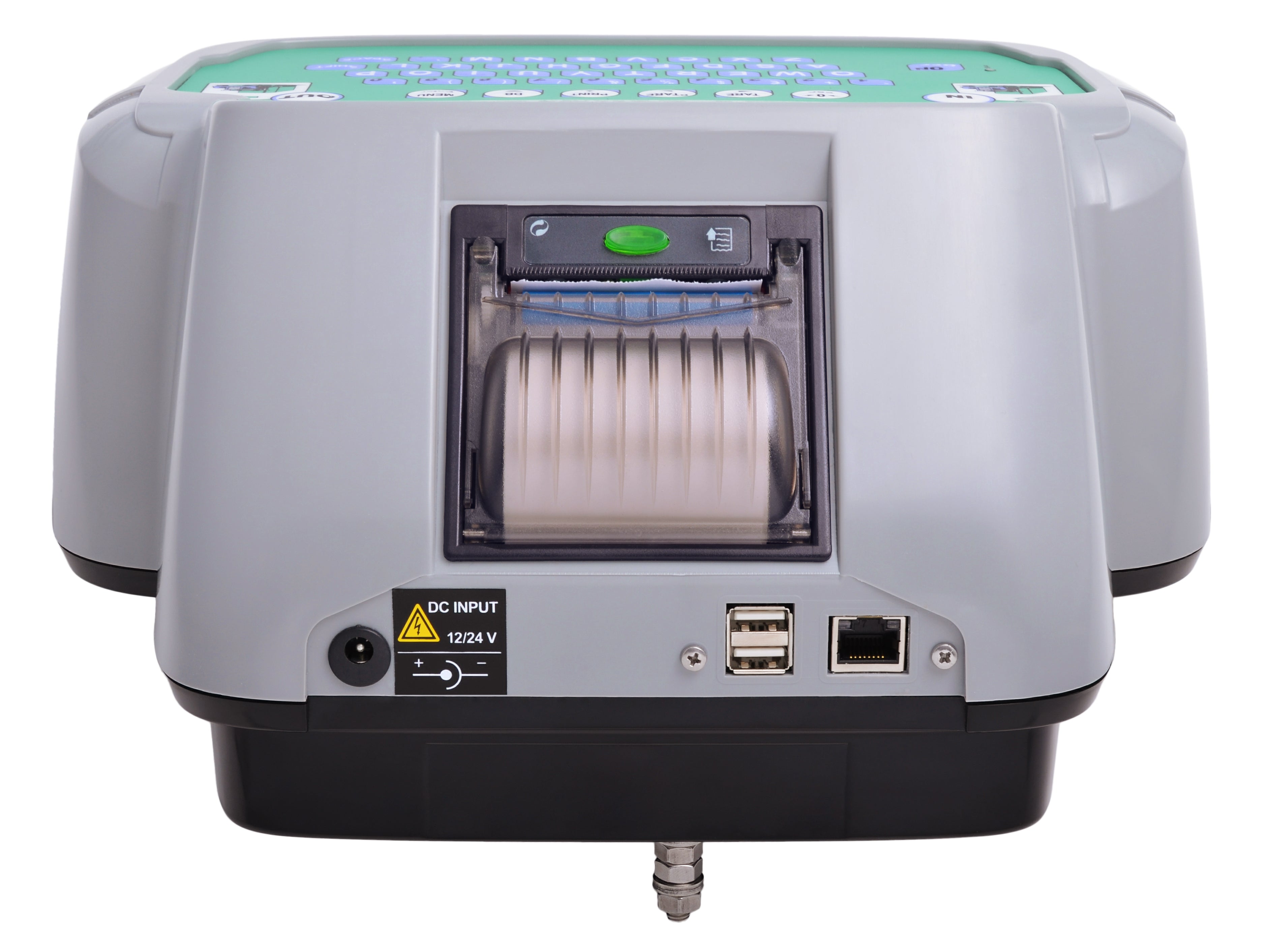

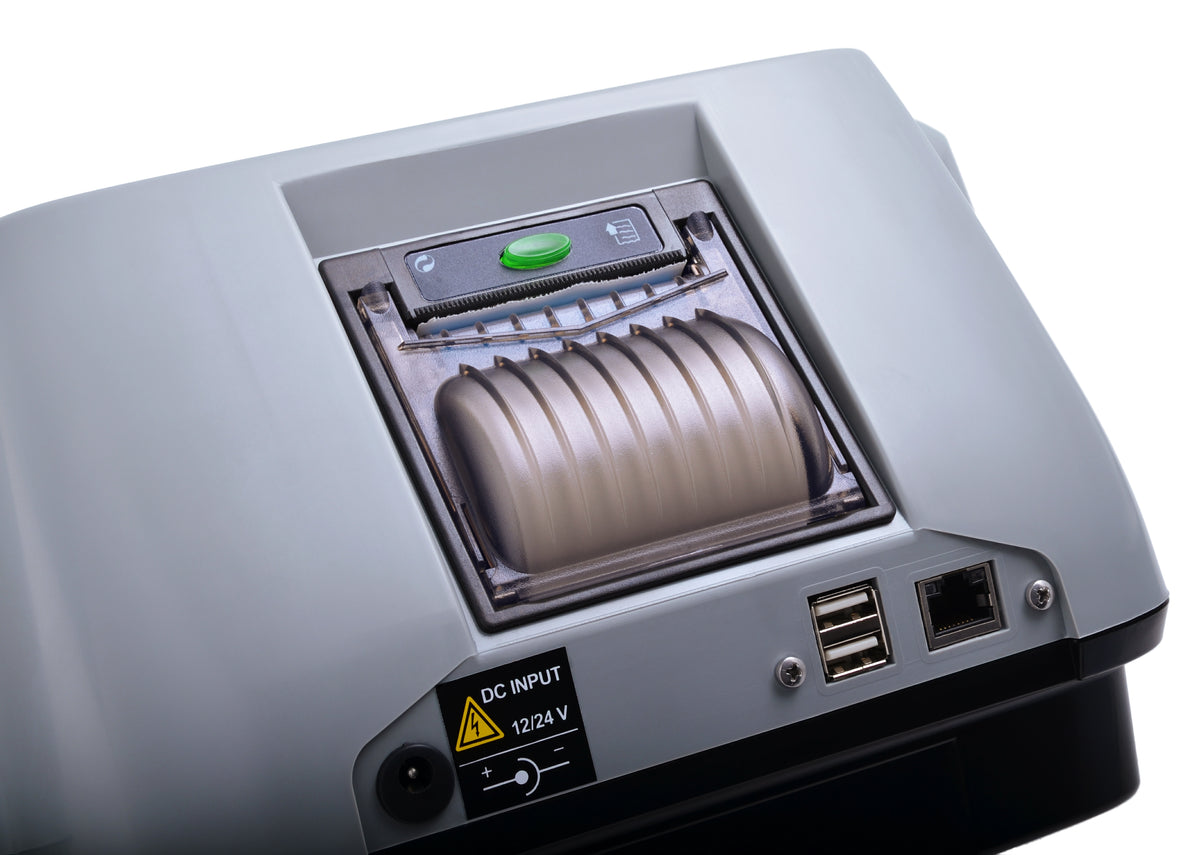

- Integrated thermal printer (optional). Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request.
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
Some optional features:
- Alibi memory (up to 10000 weighed values storable)
- Integrated thermal printer
Files
Manuals available on request
WTABBGE manual WTABBGE CE-M approved legal for trade - installer manual WTABBGE CE-M approved legal for trade - user manual WTABBGE Protocols - manual WTABBGE Protocols - CE-M approved - manual
