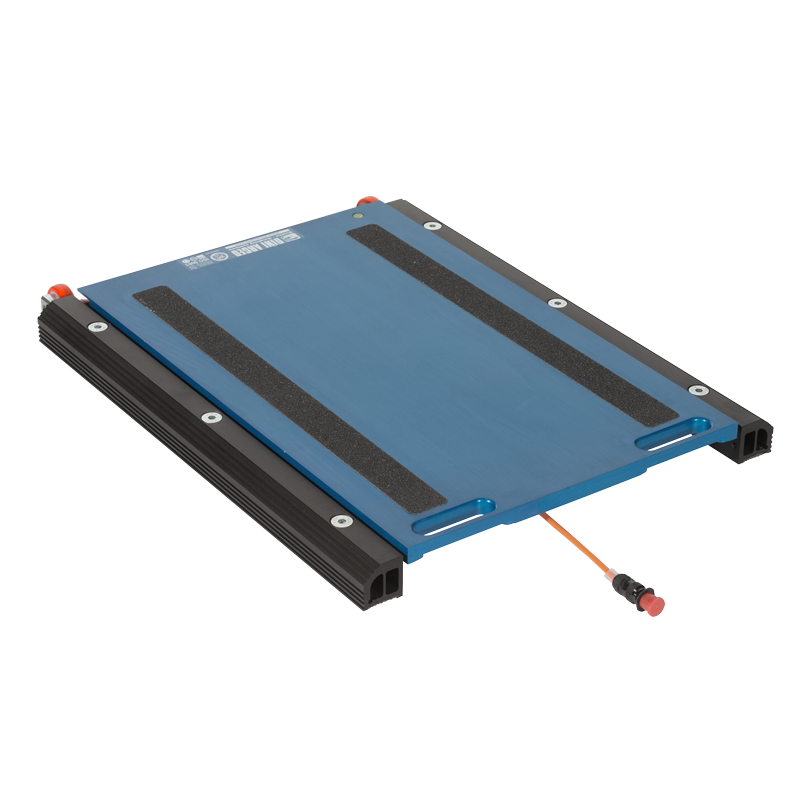

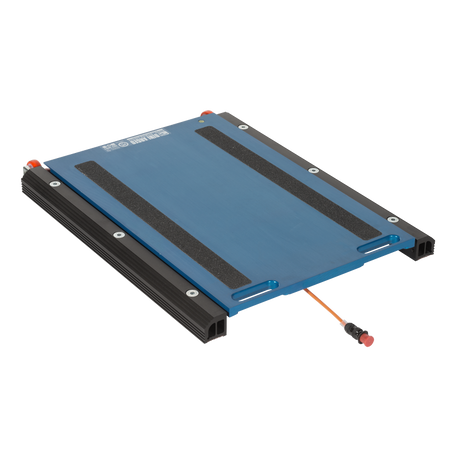

Pads designed to create weighing stations for large vehicles (vans, trucks, tankers, tractortrailers, etc.); particularly accurate and sturdy, with attention to details.
FEATURES
-Pan dimensions: 700x450mm
-Weighing area: 600x365mm
-Overall dimensions: see technical drawing
-Weight: approximately 26kg.
-Double handle for easy handling
-Fitted with wheels for pad transport.
-Sturdy structure, made in special aluminium, which guarantees lightness and makes these suitable also for harsh working conditions.

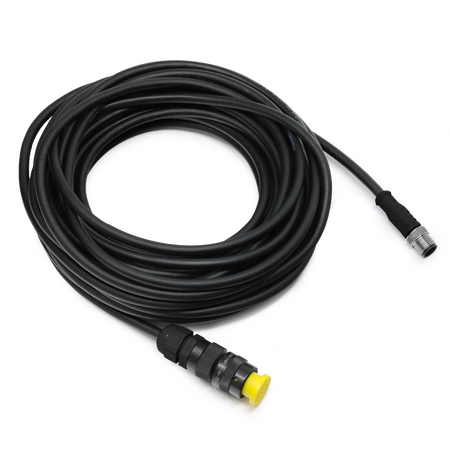

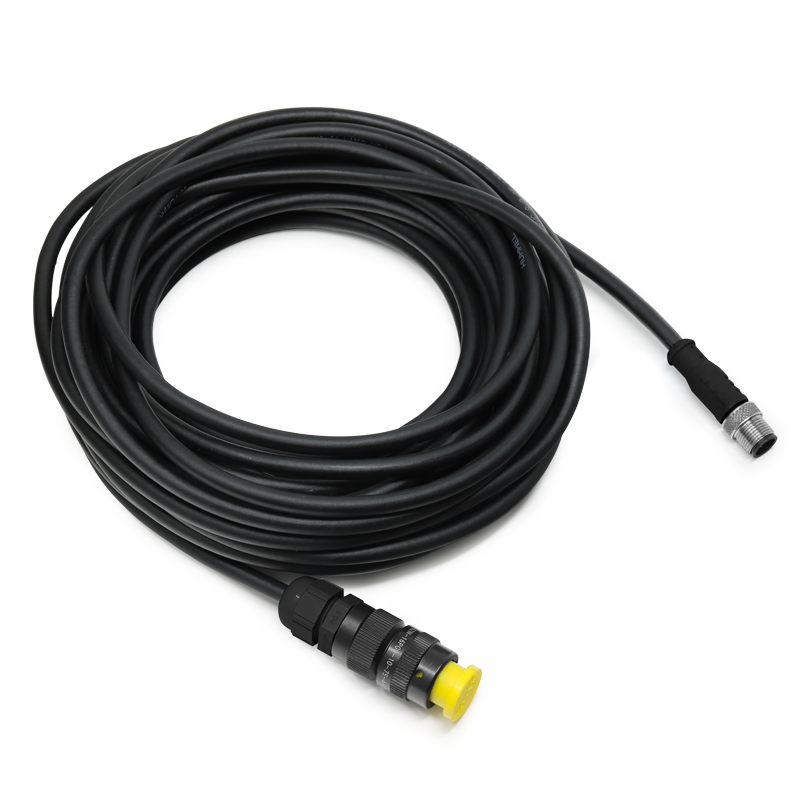

-10 m PUR cable, with IP68 connector on platform side and new M12 connector on weight indicator side.
-IP68 stainless steel load cells.
-Hermetic junction box with IP68 protection rate.
-Special vulcanised nonslip rubber applied under the pad, for good grip on all types of surfaces.
-Extremely simple and reliable connection of the scale to the weight indicator.
-Available in legal for trade approved version.
-Available in high resolution version.
-Available upon price estimate in Atex version for 1&21 e 2&22 zones.
