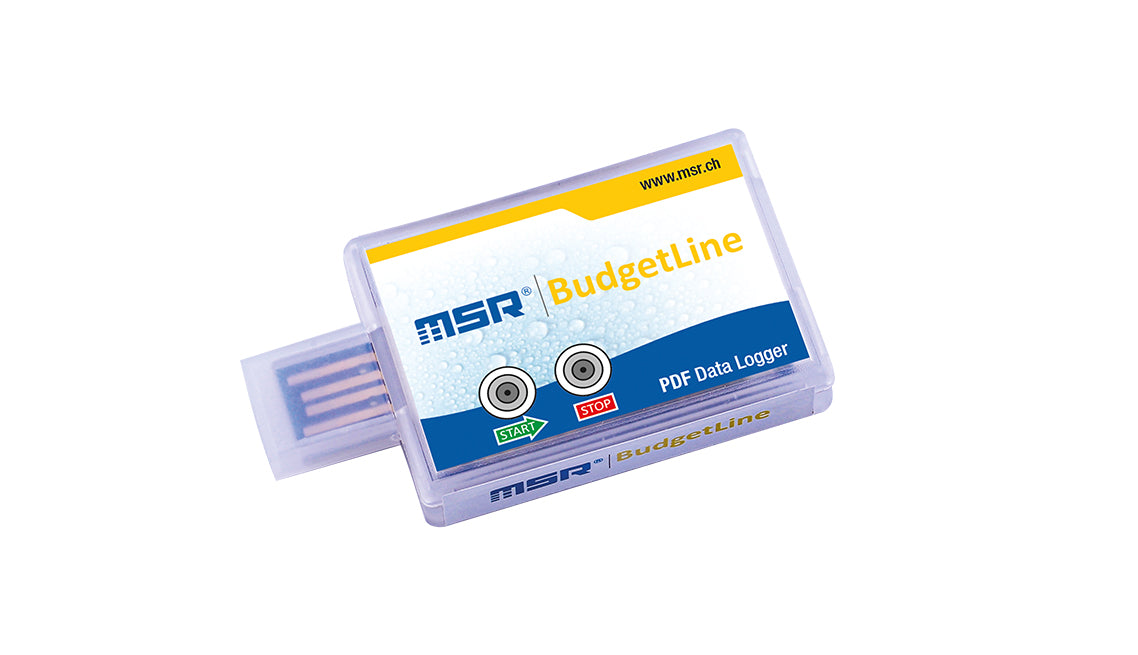

MSR63 BudgetLine: Reusable Data Logger for Temperature
MSR63 Cost-effective climate data loggers for transport and warehouse monitoring
When transporting and storing goods such as pharmaceuticals or foodstuffs, it is imperative to maintain a specified, constant temperature. The data loggers of the MSR BudgetLine help here: they measure and document climate values seamlessly and in compliance with standards.
6-point-calibration certificate and software included
On MSR BudgetLine data loggers, both the software and a 6-point calibration certificate are stored as PDF files and can be accessed directly. The recorded measurement data can be transferred quickly and easily to a PC via the USB interface. After stopping the data logger, a report of the recorded measurement data can be generated. The report can be exported either as a PDF or as an Excel or CSV file.
For temperature ranges from -100 °C up to +150 °C
The MSR BudgetLine data loggers are available in different versions – with or without display and with internal (MSR63, MSR83) or external temperature sensor (MSR86) or with an additional internal humidity sensor (MSR64, MSR84). MSR BudgetLine data loggers are DIN12830 and 21 CFR Part 11 compliant. They comply with EU regulations for the storage and transport of refrigerated and frozen foods as well as those of the US Food and Drug Administration (FDA).
Technical information of the sensors
| Sensor | Working range | Accuracy | Measurement / Storage rate |
|---|---|---|---|
|
Int. temperature (MSR63, MSR83, MSR64, MSR84) |
-30…+70 °C | ±0.5 °C (-30…+70 °C) | 1 min. up to 10 days |
General technical data of the MSR BudgetLine Data Loggers
| Housing: | PC, ABS Food Grade, IP54, not encapsulated |
|
Size & Weight MSR63: |
36 x 12 x 71 mm (W x H x L), approx. 17 g |
| Size & Weight MSR64, MSR83, MSR84: | 51 x 15 x 101 mm (W x H x L), approx. 52 g |
| Size & Weight MSR86: | 51 x 15 x 101 mm (W x H x L), approx. 56 g, cable approx. 1 m with sensor, sensor Ø6 x 30 |
| Resolution: | 0.1 °C |
| Memory capacity temp. data loggers MSR63, MSR83, MSR86: | 16 000 values |
|
Memory capacity temp. & humidity data loggers MSR64 & MSR84: |
32 000 values (16 000 per canal) |
| Alarm: | min./max. value, indication on LED |
| Type of battery: |
3.0 V lithium battery (Panasonic CR2032) |
| Life of battery: |
approx. 1 year, battery replaceable |
| Interface: |
USB 2.0, A-Type |
| Report: | PDF, Excel or CSV |
| Norms: | DIN12830, 21 CFR Part 11 |
