MSR175Plus transport data logger for shock, temperature, humidity, pressure, light

Transport Data Logger MSR175Plus: Simultaneous Measurement of Shocks in Both Low and High g-Ranges – Plus Climate and GPS Data

Comprehensive transport monitoring: simultaneous shock measurement at ±15 g and ±200 g · temperature, humidity, pressure, light · GPS/GNSS tracking · stores over 4 million measured values · air cargo approved

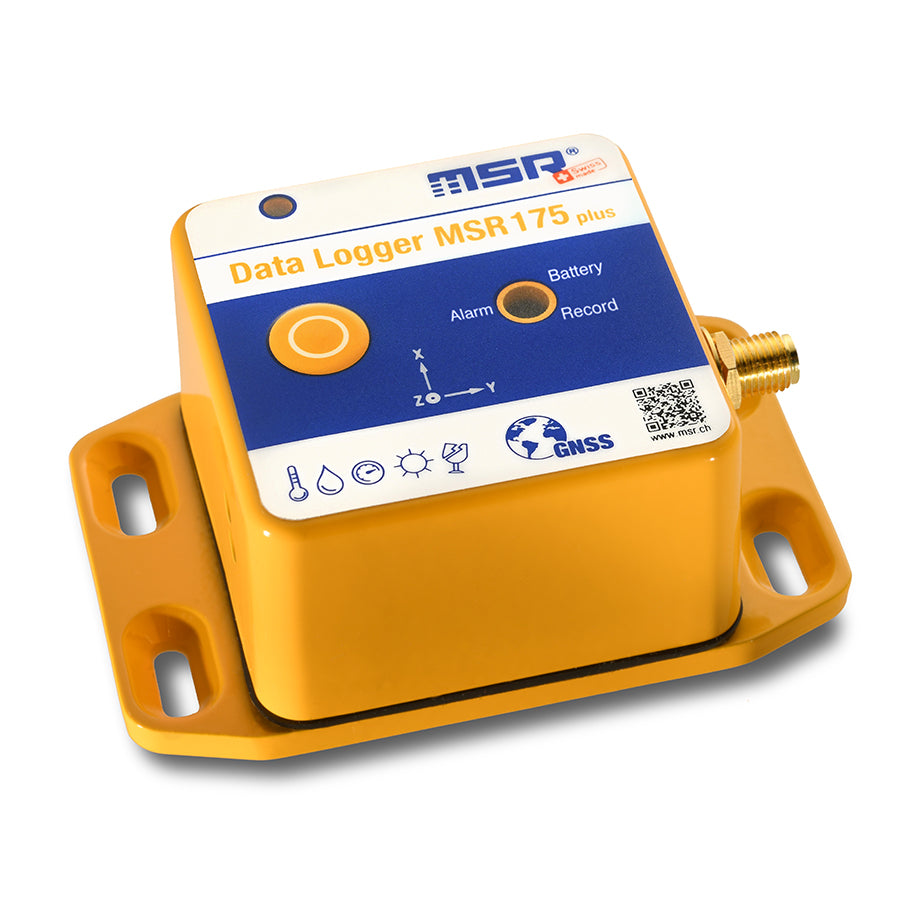

The tamper-proof MSR175Plus GPS data logger seamlessly captures potentially damaging shock events as well as recording the geographical position of the event. This robust data logger ensures compliance with transport specifications and provides indispensable data for identifying liability in the event of damage as well as helping with insurance claims.

Record important transport data for months at a time

The MSR175Plus data logger’s memory of over 4 million measurement values is sufficient to record data for days or months; over 1,000 shock or impact events can be recorded. The two acceleration sensors simultaneously record shocks in the measuring ranges of ±15 g and ±200 g. A measurement/storage rate of up to 6400 times per second is used. In addition, the robust mini data logger measures and stores temperature curves, humidity, air pressure and light. The 2400 mAh lithium-polymer battery, rechargeable via USB, ensures a long logger runtime – even with activated GPS tracking.

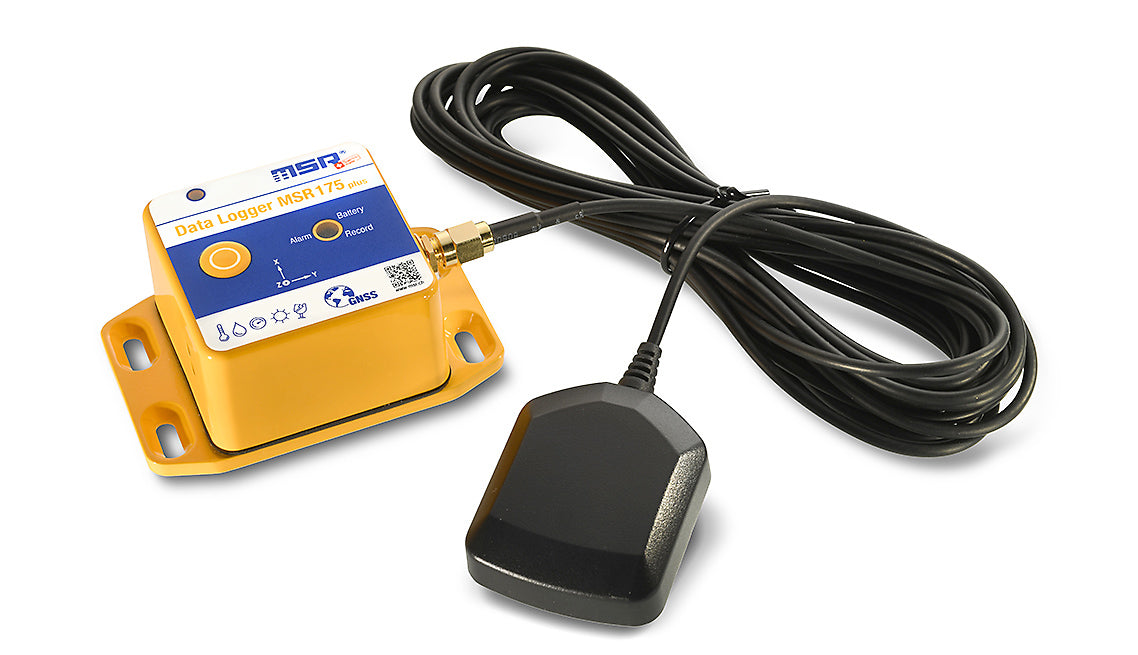

Locate critical transport events using GPS tracking

Where and when exactly did an event take place during transport or storage that was outside the preset tolerance limit? To enable you to answer this question quickly and conclusively, the MSR175Plus is equipped with a GPS/GNSS (Global Navigation Satellite System) receiver. The satellite-supported position data is stored by the data logger, allowing the location of a transported item to be quickly determined and documented in the event of a damage.

Simple operation – powerful analysis tools

The MSR175Plus software package includes three dedicated applications: MSR175 Dashboard, MSR ReportGenerator, and MSR ShockViewer.

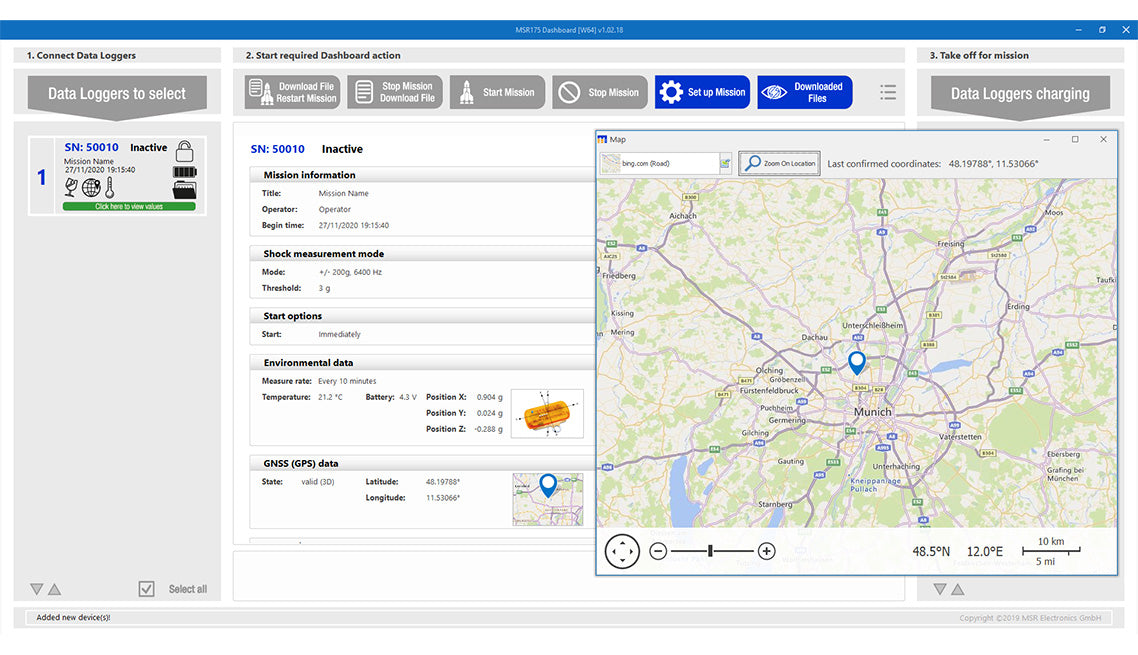

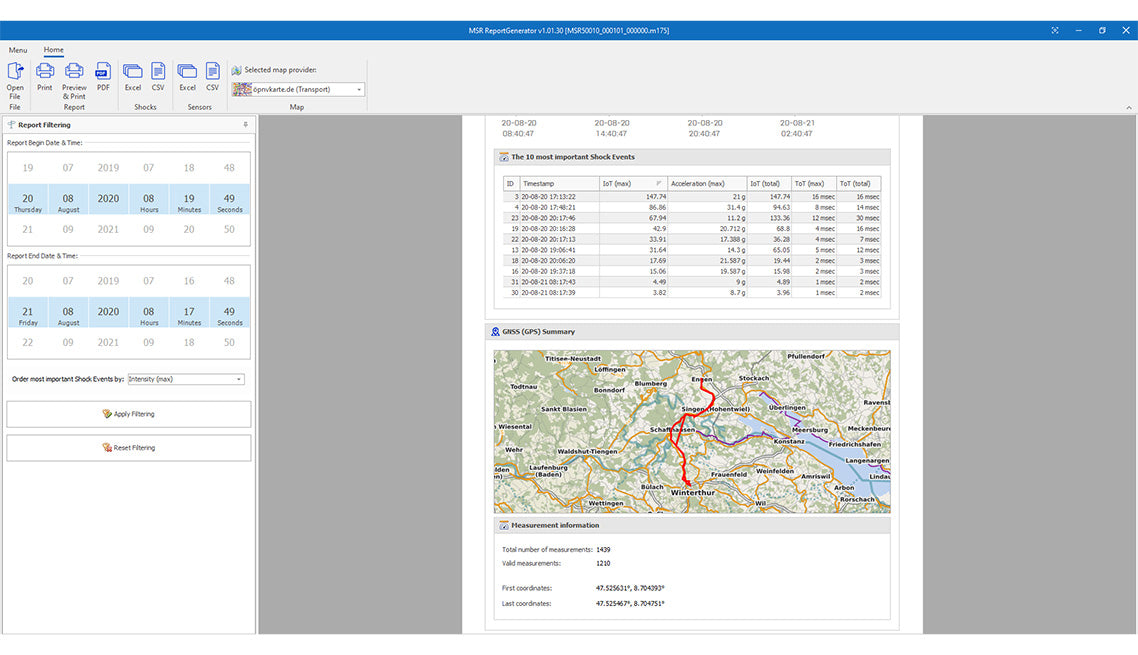

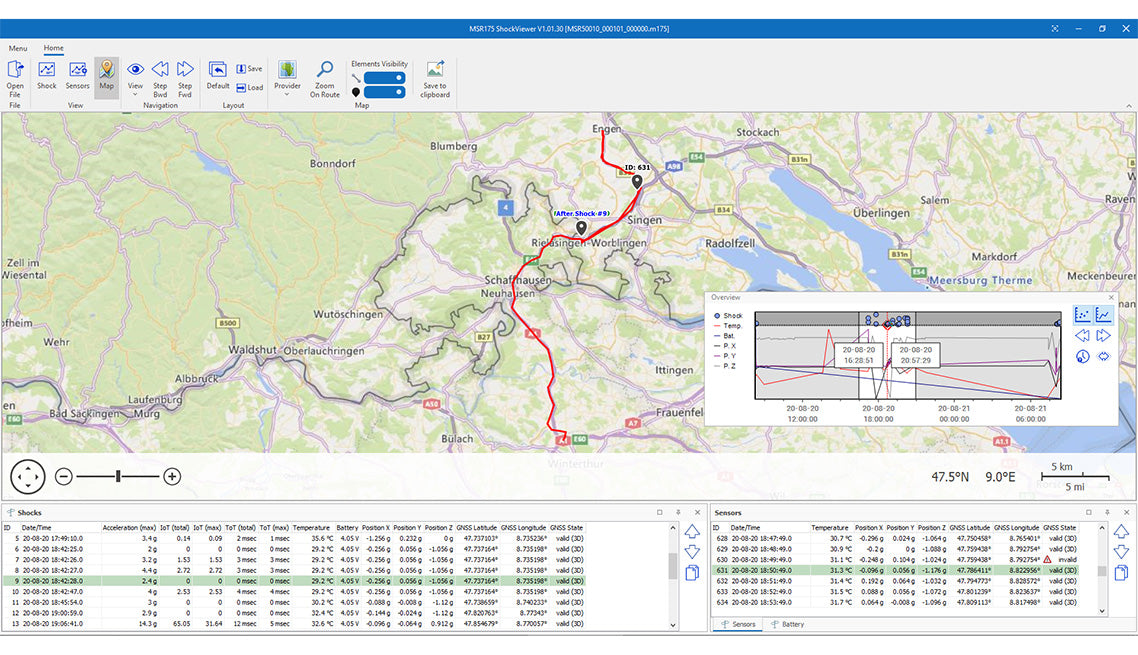

With the MSR Dashboard, device configuration and data download via USB are quick and intuitive. For a clear summary of transport data, the MSR ReportGenerator provides instant reports at the click of a button. For in-depth shock analysis, the basic version of the MSR ShockViewer enables detailed visualisation and evaluation of shock events.

More control over your supply chain

Avoid undetected transport damage and unclear liability. The MSR175Plus provides reliable documentation of critical events during shipment. Get in touch – we’re happy to help you find the right solution.
