Flexible Transport Data Logger MSR175 with Two Selectable Shock Ranges and Climate Monitoring

high-precision transport logger with 2 acceleration sensors ±15 g / ±200 g · up to 6400 readings per second · sensors for temperature, humidity, pressure and light · over 2 million storable readings · air cargo approved

Whether for liability clarification, early detection of transport damage, or packaging optimisation – the high-speed MSR175 shock data logger, approved for air freight, records critical events such as shocks, impacts, and temperature fluctuations with precision, providing objective measurement data for full transparency and traceability.

Reliable transportation monitoring and precise damage documentation

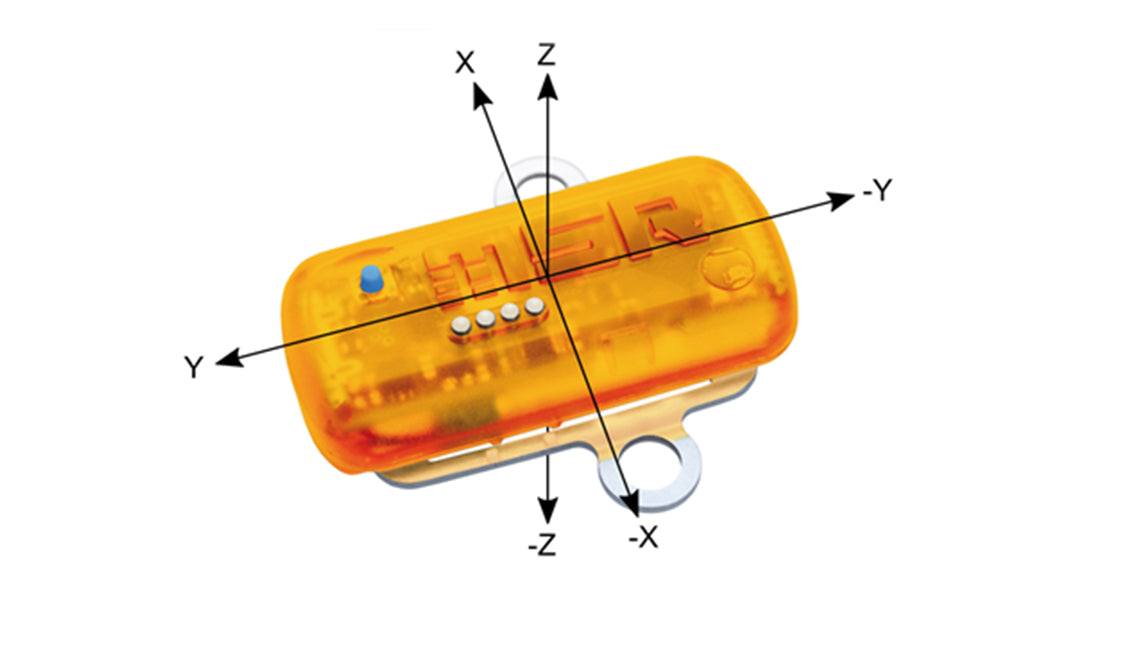

The two integrated 3-axis acceleration sensors (±15 g and ±200 g) detect shocks with a high sampling rate of up to 6400 measurements per second. This enables even brief, intense shocks to be detected and analysed with high accuracy – a crucial advantage when transporting sensitive or high-value goods.

The generous memory capacity allows – depending on the model – the recording of more than 1,000 shock events and over 2 million readings. This storage capacity ensures continuous monitoring over long transportation routes, even under demanding conditions.

Additionally, the MSR175 documents temperature profiles from -20 °C to +65 °C. Depending on the model, humidity, air pressure and light conditions are also recorded – for a comprehensive evaluation of all relevant transportation conditions.

Simple to use – efficient in evaluation

The software package for the MSR175 includes three powerful tools – free of charge:

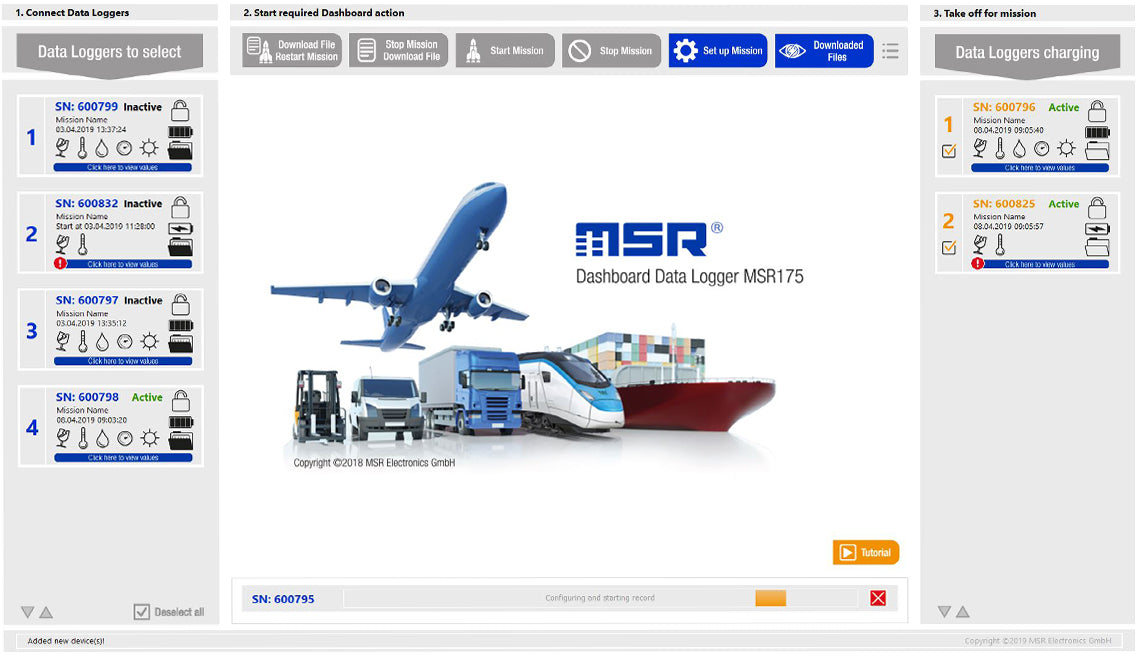

• MSR Dashboard for easy configuration and fast USB data retrieval

• MSR ReportGenerator for compact, instant reports at the push of a button

• MSR ShockViewer (basic version) for precise analysis and visualisation of shock events

Whether for a quick overview or detailed evaluation – these intuitive programmes not only save you time, but also provide reliable data to optimise your transportation and quality assurance processes.

Rely on accurate data, not assumptions

Sensors

• Acceleration ±15 g
• Acceleration ±200 g
• Temperature -20…+65 °C

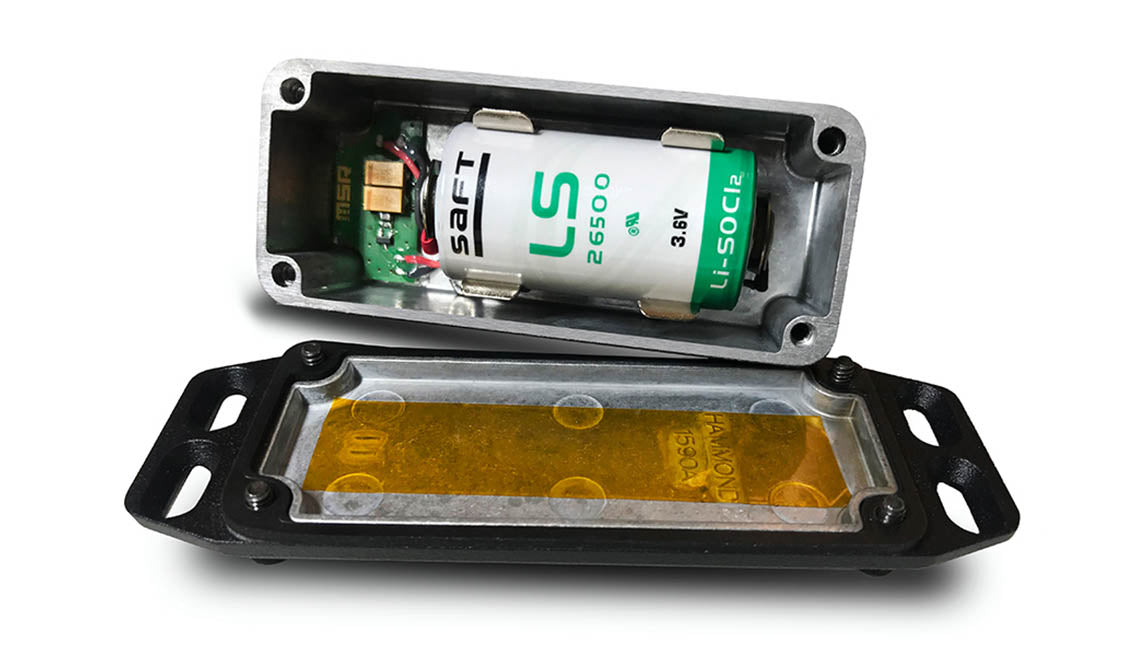

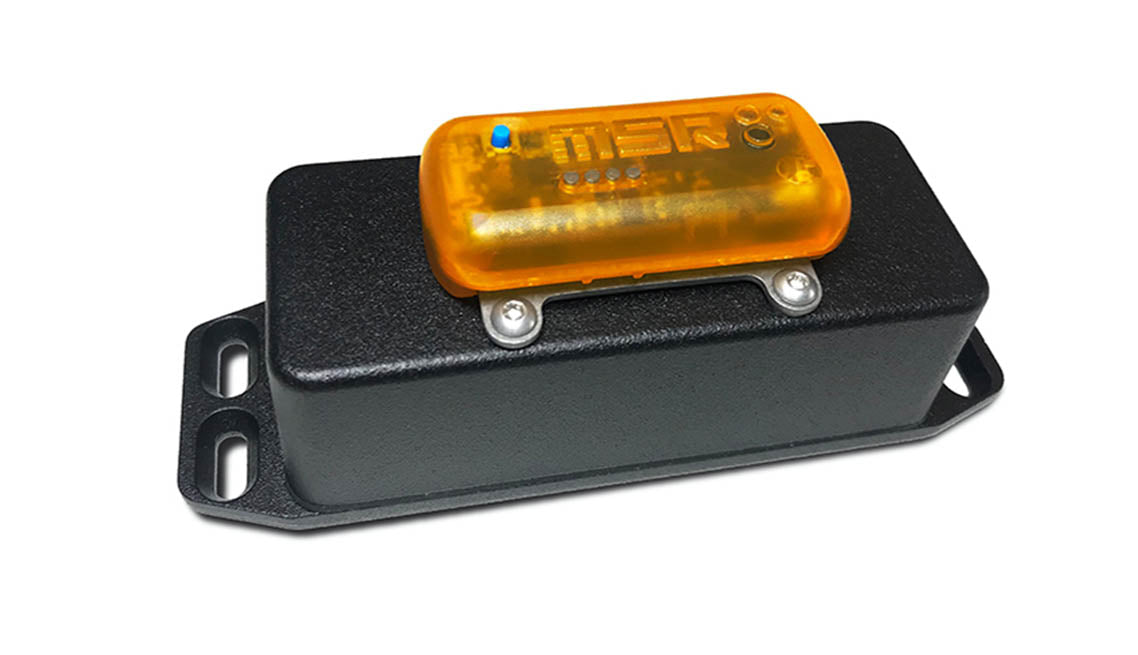

Housing & battery

PC, encapsulated, IP65,
replaceable
Li-SOCI₂-battery (3.6 V, 5800 mAh)

Size (W x H X L) & Weight:
49 x 39 x 122 mm,
approx. 180 g
